Various switches for BMW 2500-3.3Li 2800Bav (1971)

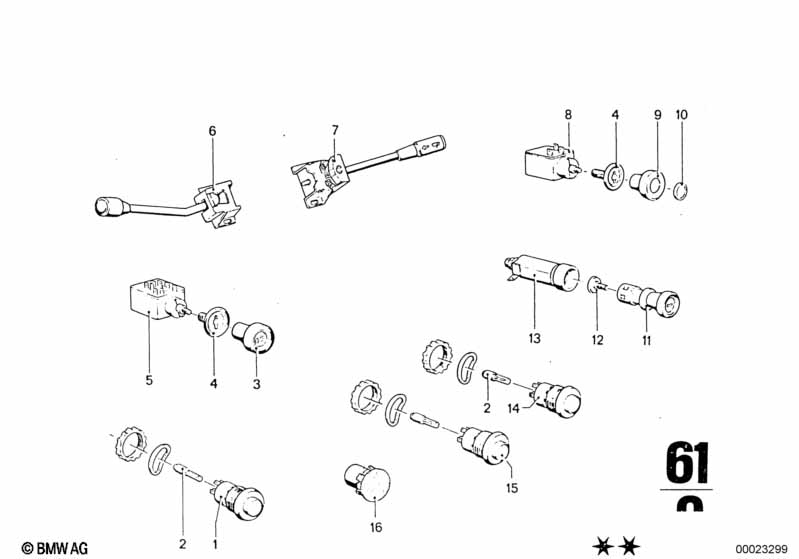

This Various switches technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bulb | 12V 1,2W | 3 | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 03 | Button | LICHT | 1 | 61311351048 | $16.77 | +core | Shop at ECS Tuning | |||
| 04 | Trim ring | 1 | 06/1969 | 07/1973 | 61318648120 | ENDED | Shop at ECS Tuning | |||
| Early version | ||||||||||
| 06 | Dip control switch | 1 | 01/1969 | 07/1973 | 61311351070 | $66.45 | ENDED | Shop at ECS Tuning | ||
| 07 | Turn indicator switch | 1 | 08/1968 | 09/1973 | 61311350488 | $178.59 | ENDED | Shop at ECS Tuning | ||
| 08 | Wiper switch | INTERVALL | 1 | 08/1968 | 09/1973 | 61311353870 | $109.65 | Shop at ECS Tuning | ||
| 09 | Button | 1 | 61311351057 | $14.55 | Shop at ECS Tuning | |||||
| 11 | Lighter element | 1 | 08/1968 | 09/1973 | 61341364532 | $18.67 | Shop at ECS Tuning | |||
| 12 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 13 | Cigarette lighter socket | 1 | 61341351422 | ENDED | Shop at ECS Tuning | |||||

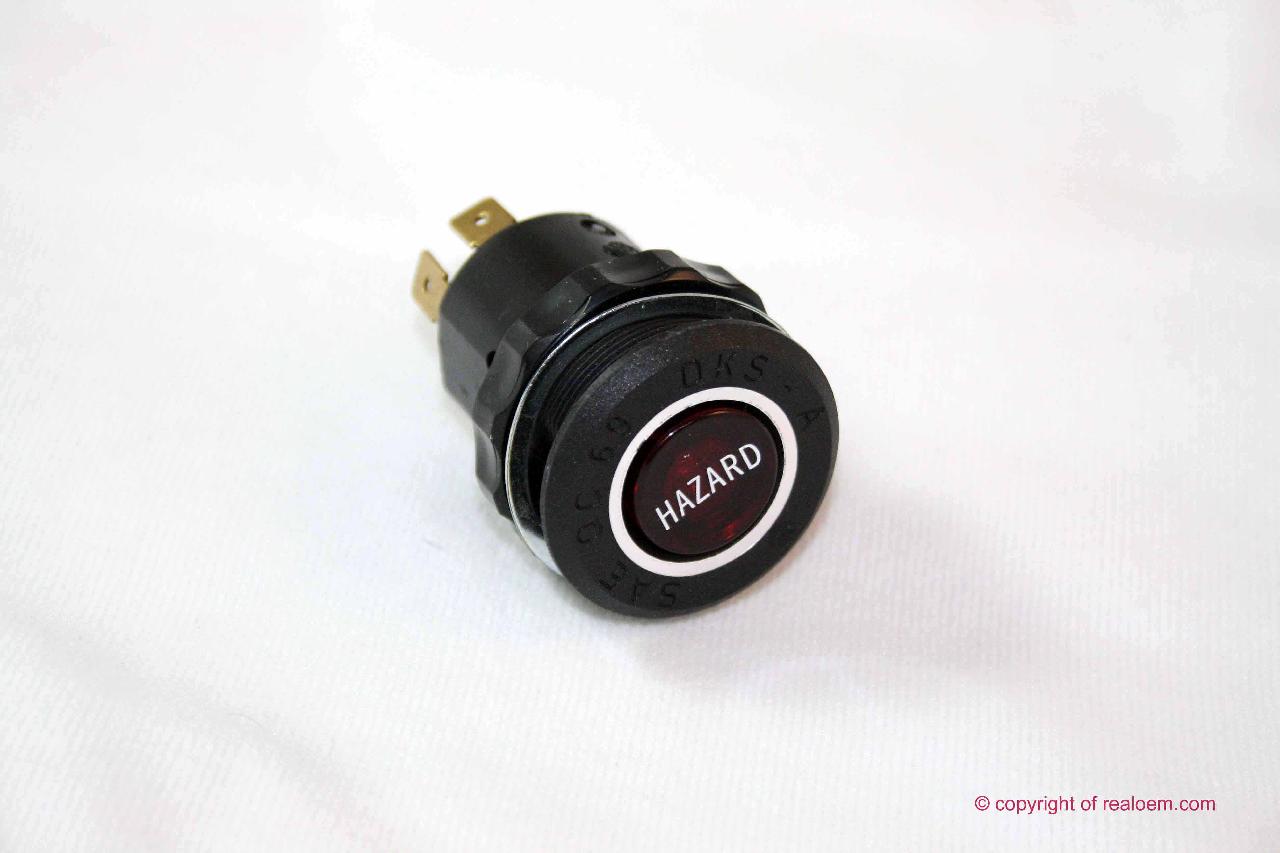

| 14 | Hazard warning switch | 1 | 01/1969 | 07/1973 | 61311355358 | $56.86 | Shop at ECS Tuning | |||
| 15 | Switch heated rear window | 1 | 04/1969 | 09/1973 | 61311353590 | $86.37 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
