Various switches for BMW 2500-3.3Li 2500 (1970)

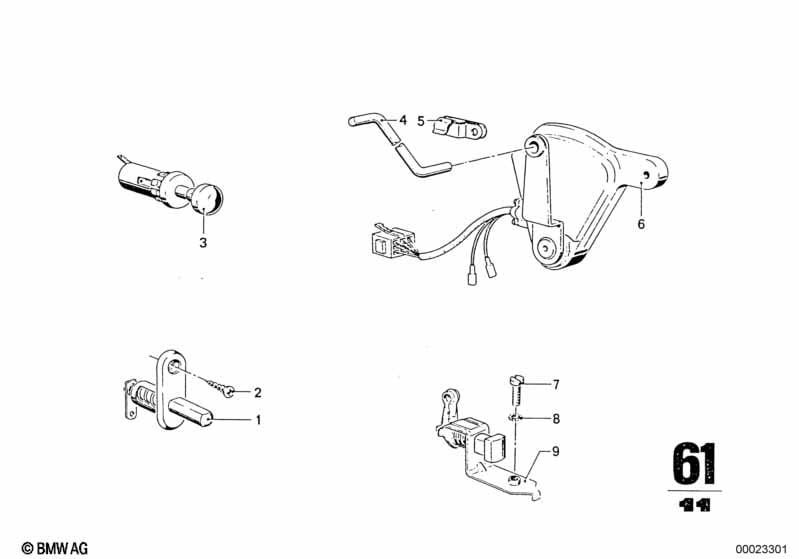

This Various switches technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch | 3 | 61311362792 | $3.67 | Shop at ECS Tuning | |||||
| 01 | Switch | 2 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 01 | Switch | 1 | 01/1969 | 07/1976 | 61311370805 | $8.98 | Shop at ECS Tuning | |||
| 02 | Csk.lenshead screw | ST3,9X9,5 | 2 | 07119902216 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Switch glove box light | 1 | 63311355157 | $19.88 | ENDED | Shop at ECS Tuning | ||||
| 06 | Switch | 1 | 01/1969 | 05/1971 | 61311350469 | ENDED | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,8X19-Z1 | 1 | 07119906765 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Various switches?
- This technical diagram illustrates the Various switches within the Vehicle electrical system group for the 2500-3.3Li 2500 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Switch (Part #61311362792).
- Which models use the hardware listed in this Various switches?
- The hardware and components featured in the Various switches are specific to the 2500-3.3Li 2500 produced during 1970. These technical specifications ensure that parts like the Switch (61311362792) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various switches assembly?
- Each item in the Various switches corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Switch by locating its position on the schematic, which then links to the official BMW part number 61311362792 for the Vehicle electrical system section.
