Relay for BMW 2500-3.3Li 3.0S (1973)

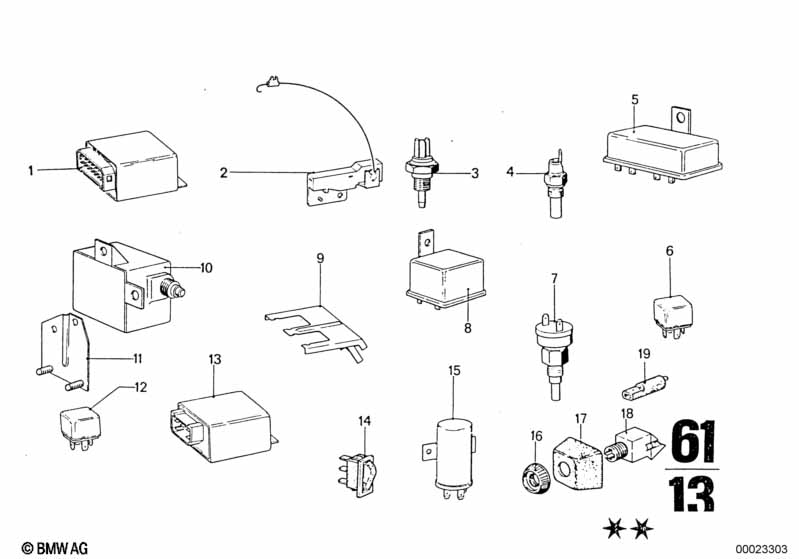

This Relay technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Relay | GELB | 5 | 09/1973 | 02/1977 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |
| 06 | Mini-relay | 5 | 09/1973 | 02/1977 | 61311373588 | $11.38 | Shop at ECS Tuning | |||
| 09 | Holder | 1 | 09/1973 | 02/1977 | 61311356164 | ENDED | Shop at ECS Tuning | |||
| 12 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 13 | Wiper-wash-interval control unit | 1 | 09/1973 | 02/1977 | 61311358491 | $161.95 | ENDED | Shop at ECS Tuning | ||
| 14 | Switch additional mirror | 1 | 09/1973 | 02/1977 | 61311360778 | $17.78 | ENDED | Shop at ECS Tuning | ||
| 15 | Wiper-wash-interval control unit | 1 | 61311357904 | ENDED | Shop at ECS Tuning | |||||
| 16 | Trim ring | 1 | 09/1973 | 02/1977 | 61311358688 | ENDED | Shop at ECS Tuning | |||
| 17 | Cap | 1 | 09/1973 | 02/1977 | 51411827175 | ENDED | Shop at ECS Tuning | |||
| 18 | Switch electr. exterior mirror | 1 | 09/1973 | 02/1977 | 61311358626 | $170.39 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Relay?
- This technical diagram illustrates the Relay within the Vehicle electrical system group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Relay (Part #61311373585).
- Which models use the hardware listed in this Relay?
- The hardware and components featured in the Relay are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Relay (61311373585) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay assembly?
- Each item in the Relay corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Relay by locating its position on the schematic, which then links to the official BMW part number 61311373585 for the Vehicle electrical system section.
