Horn for BMW 2500-3.3Li 3.0Si (1973)

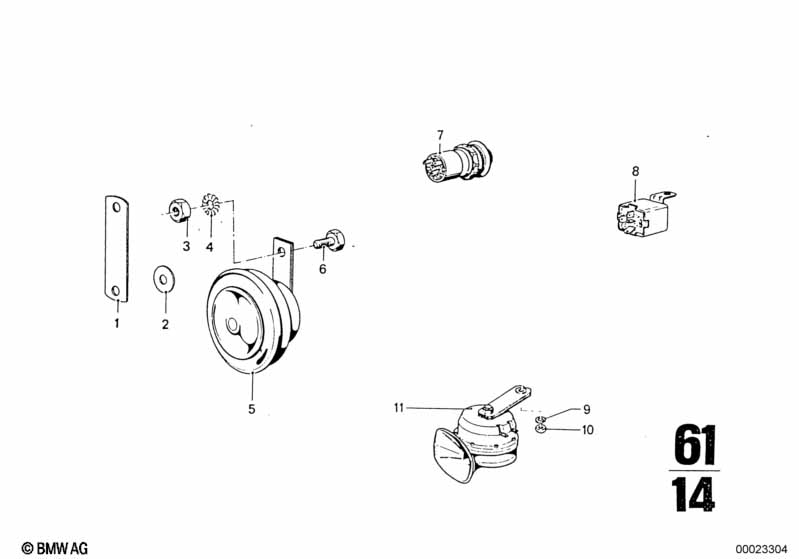

This Horn technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 09 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNS3 | 2 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Horn | FIAMM 410HZ | 1 | 61337163982 | ENDED | Shop at ECS Tuning | ||||
| 11 | Horn | FIAMM 510HZ | 1 | 61337163983 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 2500-3.3Li 3.0Si produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119904115).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 2500-3.3Li 3.0Si produced during 1973. These technical specifications ensure that parts like the Wave washer (07119904115) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119904115 for the Vehicle electrical system section.
