Wiper for BMW 2500-3.3Li 3.0Si (1977)

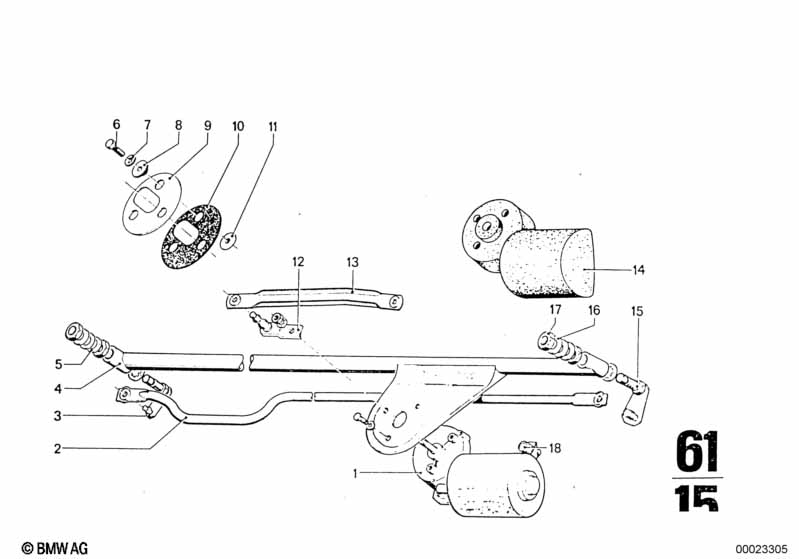

This Wiper technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Connection rod | 1 | 61611355798 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Console | 1 | 61611360019 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Stop buffer | X | 61611359866 | $5.47 | Shop at ECS Tuning | |||||
| 05 | Washer | 1 | 61611350116 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B6 | 6 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Bush | 3 | 61611351426 | ENDED | Shop at ECS Tuning | |||||
| 09 | Plate | 1 | 61611351424 | ENDED | Shop at ECS Tuning | |||||
| 10 | Reinforcement | 1 | 61611351423 | ENDED | Shop at ECS Tuning | |||||
| 11 | Washer | 3 | 61611351425 | ENDED | Shop at ECS Tuning | |||||
| 12 | Motor crank arm | 1 | 61611350949 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 13 | Drive rod | 1 | 61611350114 | +core | Shop at ECS Tuning | |||||
| 16 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
