Windshield cleaning for BMW 2500-3.3Li 2.8L (1977)

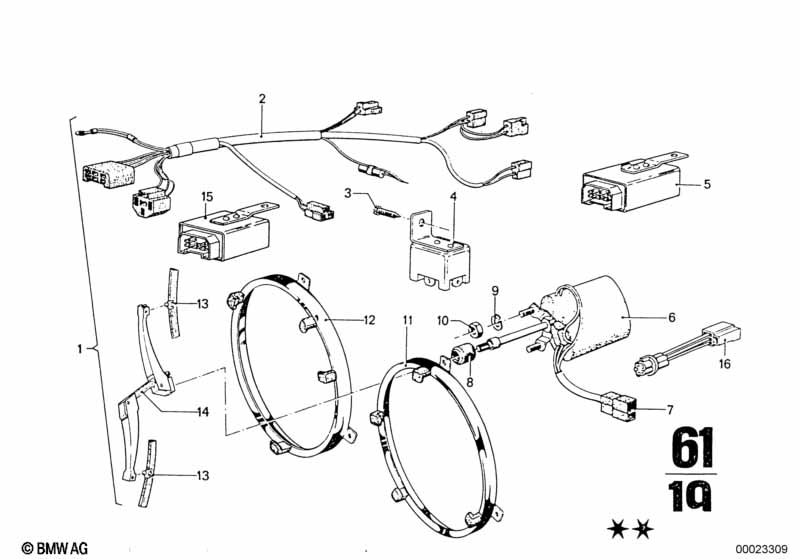

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2.8L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cable set, headlight cleaning system | 1 | 61121357395 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Wiring wiper motor | X | 61631364952 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fillister head self-tapping screw | ST4,8X13 | 1 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring wiper motor | X | 61631364952 | ENDED | Shop at ECS Tuning | |||||
| 04 | Relay | 1 | 61321358198 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Wiring wiper motor | X | 61631364952 | ENDED | Shop at ECS Tuning | |||||
| 05 | Wiper-wash-interval control unit | 1 | 61311356713 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Wiring wiper motor | X | 61631364952 | ENDED | Shop at ECS Tuning | |||||
| 06 | Wiper motor right | 1 | 61631363132 | $236.44 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring wiper motor | X | 61631364952 | ENDED | Shop at ECS Tuning | |||||
| 07 | Housing | 2 | 61131355372 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cap | 2 | 61631359531 | $5.12 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Glass holding frame | 2 | 63121360614 | $55.73 | ENDED | Shop at ECS Tuning | ||||
| 12 | Glass holding frame | 2 | 63121360615 | $55.73 | Shop at ECS Tuning | |||||
| 13 | Wiper blade | 4 | 61631356734 | $27.34 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wiper arm left | 1 | 61631356735 | $52.17 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wiper arm right | 1 | 61631356736 | $56.64 | ENDED | Shop at ECS Tuning | ||||
| 15 | Wiper-wash-interval control unit | 1 | 61311358491 | $161.95 | ENDED | Shop at ECS Tuning | ||||
| 16 | Wiring wiper motor | 2 | 61631364952 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2.8L Windshield cleaning?
- This technical diagram illustrates the Windshield cleaning within the Vehicle electrical system group for the 2500-3.3Li 2.8L produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Cable set, headlight cleaning system (Part #61121357395).
- Which models use the hardware listed in this Windshield cleaning?
- The hardware and components featured in the Windshield cleaning are specific to the 2500-3.3Li 2.8L produced during 1977. These technical specifications ensure that parts like the Cable set, headlight cleaning system (61121357395) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Windshield cleaning assembly?
- Each item in the Windshield cleaning corresponds to the numbered list below the illustration. For the 2500-3.3Li 2.8L, you can identify the Cable set, headlight cleaning system by locating its position on the schematic, which then links to the official BMW part number 61121357395 for the Vehicle electrical system section.
