Windshield cleaning for BMW 2500-3.3Li 3.3Li (1977)

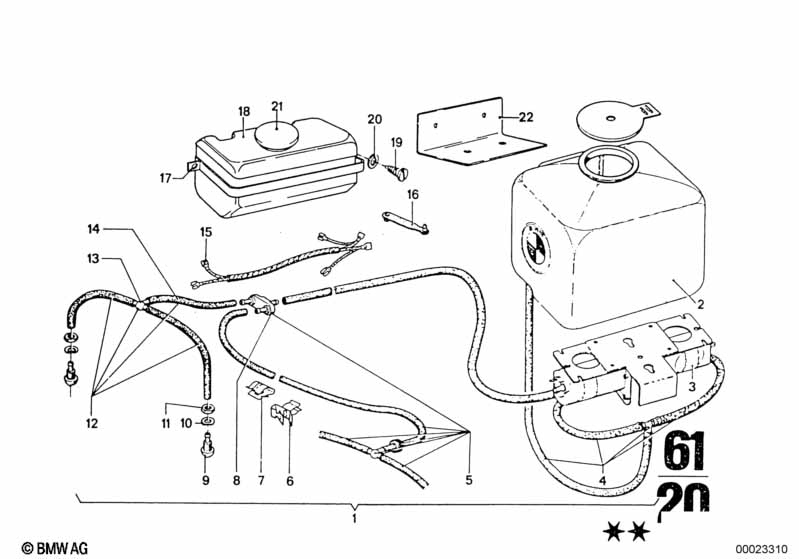

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Wash pump | 1 | 61671359116 | $152.41 | Shop at ECS Tuning | |||||
| 03 | Twin wash pump | 1 | 61671359118 | $175.21 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose line | 1 | 61661356133 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hose | 1 | 61661356127 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cable clamp | 1 | 61131351136 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pipe clip | 1 | 18307565082 | $0.38 | Shop at ECS Tuning | |||||
| 08 | Valve | 2 | 61661355299 | $18.57 | Shop at ECS Tuning | |||||
| 09 | Spray nozzle | 4 | 61671355029 | $8.07 | ENDED | Shop at ECS Tuning | ||||
| 09 | Jet | 3 | 61671355871 | ENDED | Shop at ECS Tuning | |||||
| 10 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M10 | 4 | 07119922851 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 12 | Hose | 1 | 61661356126 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hose line | 1 | 61661356705 | ENDED | Shop at ECS Tuning | |||||
| 13 | Distribution piece | 4 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 14 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 15 | Wiring set | 1 | 61121352837 | ENDED | Shop at ECS Tuning | |||||
| 16 | Cable holder | 53MM | 2 | 61131353663 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 16 | Cable holder | 70MM | 2 | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 17 | Holder | 1 | 61671357815 | ENDED | Shop at ECS Tuning | |||||
| 18 | Fluid container | 1 | 61671357814 | ENDED | Shop at ECS Tuning | |||||
| 19 | Hex head screw | ST4,8X9,5-C-ZNS | 2 | 07119901554 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 20 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 20 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 21 | Cover | 1 | 61668645126 | ENDED | Shop at ECS Tuning | |||||
| 21 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 22 | Protection plate | 1 | 61671358254 | ENDED | Shop at ECS Tuning |
