Windshield cleaning for BMW 2500-3.3Li 3.0S (1973)

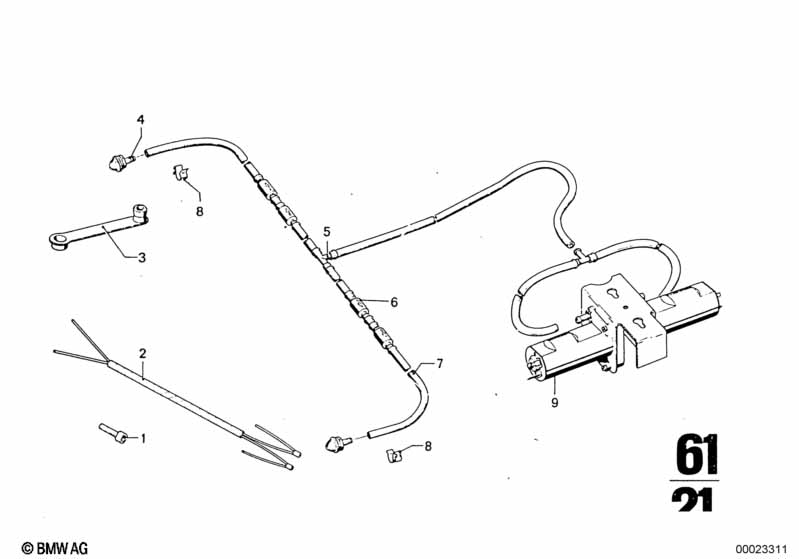

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insulation sleeve | 1 | 61131352601 | $0.84 | Shop at ECS Tuning | |||||
| 02 | Wiring set | 1 | 61121352837 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cable holder | 70MM | 1 | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 04 | Spray nozzle | 2 | 61711353762 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hose line | 1 | 61711355444 | ENDED | Shop at ECS Tuning | |||||
| 06 | Valve | 1 | 61661355299 | $18.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Windshield cleaning?
- This technical diagram illustrates the Windshield cleaning within the Vehicle electrical system group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Insulation sleeve (Part #61131352601).
- Which models use the hardware listed in this Windshield cleaning?
- The hardware and components featured in the Windshield cleaning are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Insulation sleeve (61131352601) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Windshield cleaning assembly?
- Each item in the Windshield cleaning corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Insulation sleeve by locating its position on the schematic, which then links to the official BMW part number 61131352601 for the Vehicle electrical system section.
