Fuse housing/relay bracket for BMW 7 Series E38 L7 (1998)

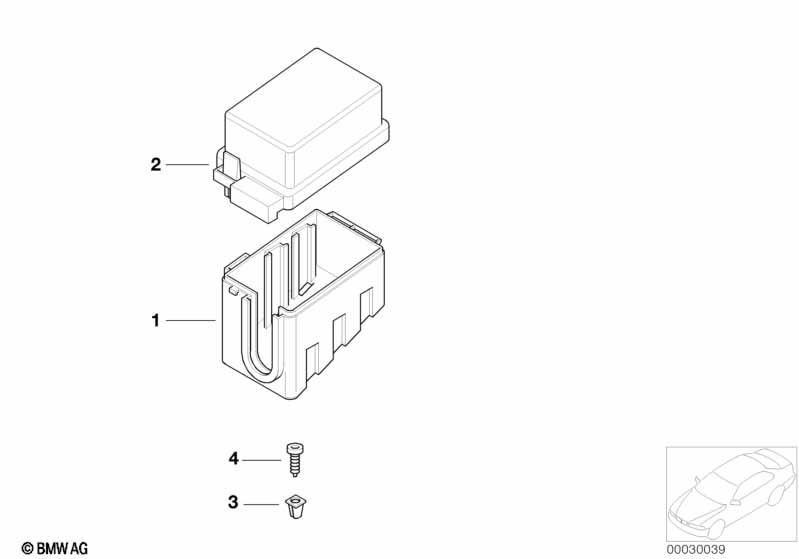

This Fuse housing/relay bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring box | 1 | 09/1998 | 61131382419 | $10.72 | Shop at ECS Tuning | ||||
| 02 | Relay box cover | 1 | 09/1998 | 61138368638 | ENDED | Shop at ECS Tuning | ||||
| 03 | Expanding nut | ST 4.8 WEISS | 2 | 09/1998 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST4,8X16 | 2 | 09/1998 | 07147137416 | $0.20 | Shop at ECS Tuning |
