Original BMW battery (Warranty only) for BMW 5 Series E39 528i (2000)

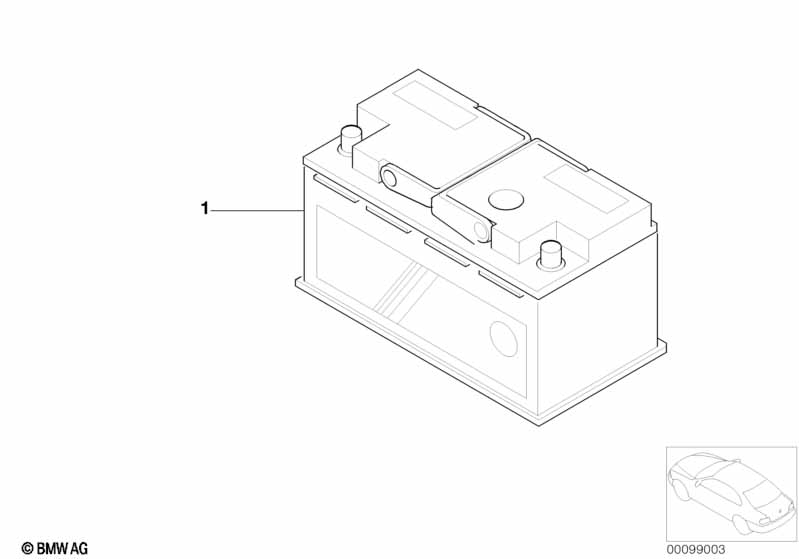

This Original BMW battery (Warranty only) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Original BMW battery (Warranty only) | 80AH | 1 | 61217604816 | Shop at ECS Tuning | |||||
| 01 | Original BMW battery (Warranty only) | 90AH | 1 | 61217604822 | Shop at ECS Tuning | |||||
| 01 | Original BMW battery (Warranty only) | 70AH | 1 | 61218381730 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Original BMW battery (Warranty only)?
- This technical diagram illustrates the Original BMW battery (Warranty only) within the Vehicle electrical system group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Original BMW battery (Warranty only) (Part #61217604816).
- Which models use the hardware listed in this Original BMW battery (Warranty only)?
- The hardware and components featured in the Original BMW battery (Warranty only) are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Original BMW battery (Warranty only) (61217604816) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Original BMW battery (Warranty only) assembly?
- Each item in the Original BMW battery (Warranty only) corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Original BMW battery (Warranty only) by locating its position on the schematic, which then links to the official BMW part number 61217604816 for the Vehicle electrical system section.
