Repair cable main cable harness for BMW 3 Series E46 316i (2004)

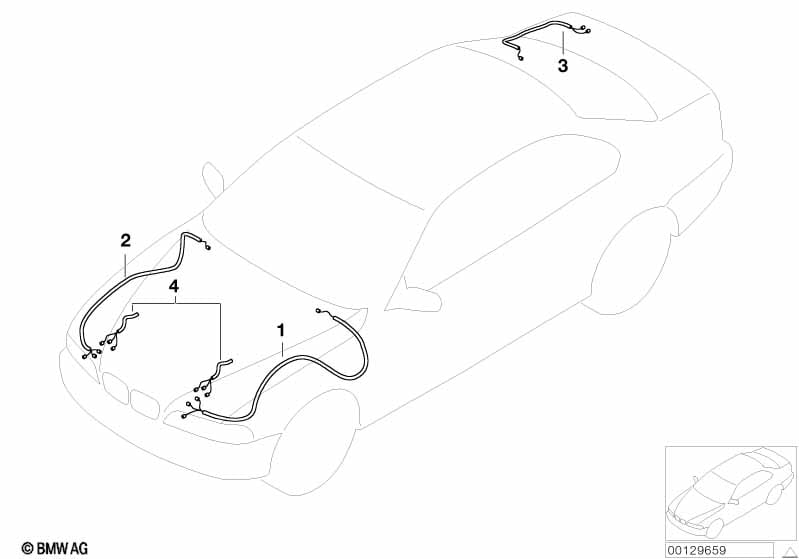

This Repair cable main cable harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left repair wiring set | 1 | 09/2003 | 03/2004 | 61116943295 | $550.75 | Shop at ECS Tuning | |||
| 02 | Front right repair wiring set | 1 | 09/2003 | 03/2004 | 61116943600 | $550.75 | ENDED | Shop at ECS Tuning | ||
| 03 | Repair wiring set rear right | 1 | 09/2003 | 03/2004 | 61116943602 | $550.75 | Shop at ECS Tuning | |||
| 04 | Repair cable set, headlight | 1 | 61126936974 | $227.75 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 04 | Repair cable set, headlight | 1 | 61126939279 | $227.75 | Shop at ECS Tuning | |||||
