Switch, seat adjustment for BMW 3 Series E46 325i (2001)

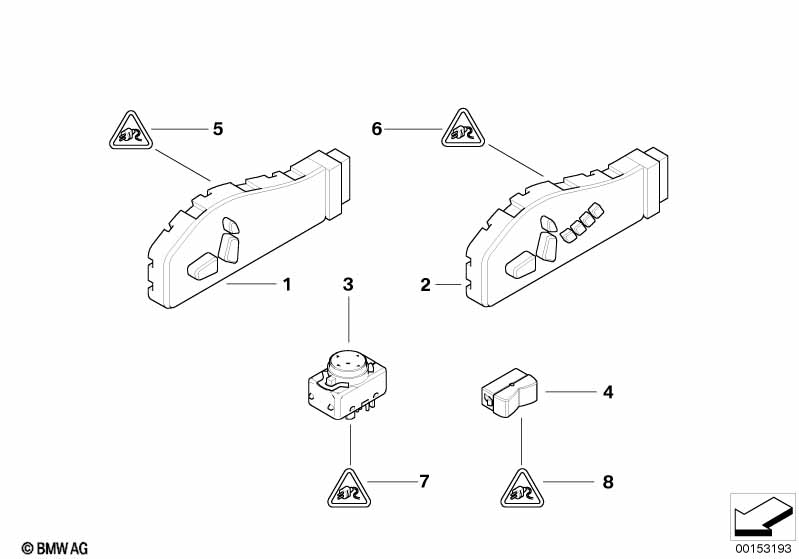

This Switch, seat adjustment technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuation unit left | 1 | 03/2002 | 61308099071 | $132.65 | Shop at ECS Tuning | ||||
| 01 | Actuation unit right | 1 | 03/2002 | 61308099072 | $132.65 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 02 | Actuation unit left | 1 | 03/2002 | 52108263133 | $378.64 | Shop at ECS Tuning | ||||
| 03 | Left lumbar support switch | 1 | 61318352291 | $60.61 | Shop at ECS Tuning | |||||
| 03 | Right lumbar support switch | 1 | 61318360877 | $60.61 | Shop at ECS Tuning | |||||
| 07 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
