Single parts for rear window wiper for BMW 3 Series E46 320i (2005)

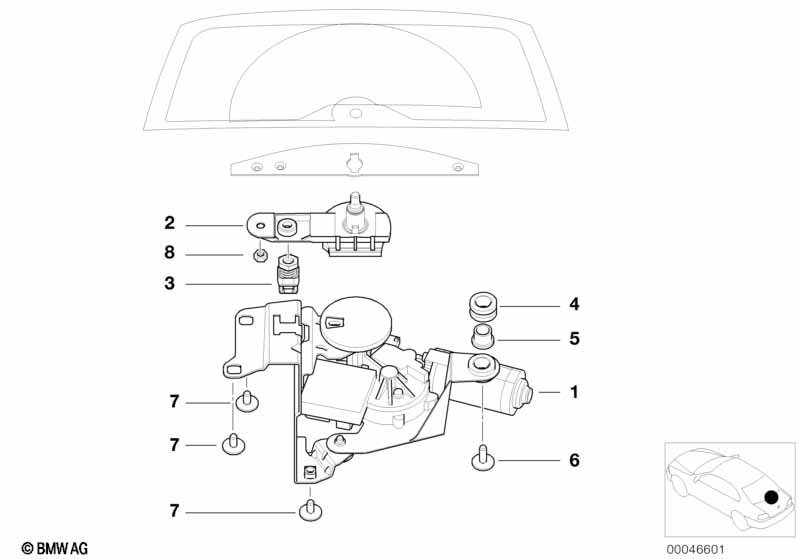

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window wiper motor | 1 | 61627010295 | $313.31 | Shop at ECS Tuning | |||||
| 02 | Wipershaft pivot | 1 | 61628220831 | $72.70 | Shop at ECS Tuning | |||||
| 03 | Catch bracket, rear window | 1 | 51248218850 | $8.52 | Shop at ECS Tuning | |||||
| 04 | Damper ring f rear window wiper motor | 1 | 61628220796 | $3.57 | Shop at ECS Tuning | |||||
| 05 | Bearing sleeve f rear window wiper motor | 1 | 61628220819 | $1.07 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | M6X22 | 1 | 07147075867 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Torx-bolt with washer | ISA M6X9 | 3 | 07147154230 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Single parts for rear window wiper?
- This technical diagram illustrates the Single parts for rear window wiper within the Vehicle electrical system group for the 3 Series E46 320i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Rear window wiper motor (Part #61627010295).
- Which models use the hardware listed in this Single parts for rear window wiper?
- The hardware and components featured in the Single parts for rear window wiper are specific to the 3 Series E46 320i produced during 2005. These technical specifications ensure that parts like the Rear window wiper motor (61627010295) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for rear window wiper assembly?
- Each item in the Single parts for rear window wiper corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Rear window wiper motor by locating its position on the schematic, which then links to the official BMW part number 61627010295 for the Vehicle electrical system section.
