Single parts for rear window cleaning for BMW 3 Series E46 320i (2004)

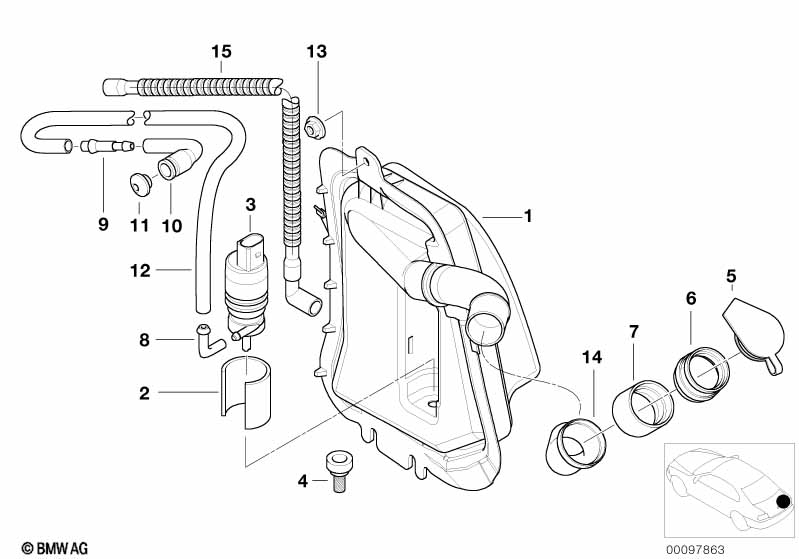

This Single parts for rear window cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield cleaning container | 1 | 61688374557 | $33.60 | Shop at ECS Tuning | |||||
| 02 | Insulation | 1 | 61687007944 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Washer pump rear | 1 | 67128362154 | $42.75 | Shop at ECS Tuning | |||||
| 04 | Strainer f wash pump | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 05 | Upper cover | 1 | 61681386301 | $1.18 | Shop at ECS Tuning | |||||
| 06 | Center cover | 1 | 61681386302 | $4.18 | Shop at ECS Tuning | |||||
| 07 | Bottom cover | 1 | 61681386303 | $1.77 | Shop at ECS Tuning | |||||
| 08 | Support | 1 | 61668374371 | $1.12 | Shop at ECS Tuning | |||||
| 09 | Valve | 1 | 61688220822 | $4.78 | Shop at ECS Tuning | |||||
| 10 | Support | 1 | 61688220825 | $2.18 | Shop at ECS Tuning | |||||
| 11 | Spray nozzle f rear window cleaning | 1 | 61688220823 | $3.83 | Shop at ECS Tuning | |||||
| 12 | Hose line | 1 | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 13 | Hex nut | BM6-8-ZNFE SW | 3 | 07129905470 | $0.29 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Single parts for rear window cleaning?
- This technical diagram illustrates the Single parts for rear window cleaning within the Vehicle electrical system group for the 3 Series E46 320i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Windshield cleaning container (Part #61688374557).
- Which models use the hardware listed in this Single parts for rear window cleaning?
- The hardware and components featured in the Single parts for rear window cleaning are specific to the 3 Series E46 320i produced during 2004. These technical specifications ensure that parts like the Windshield cleaning container (61688374557) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for rear window cleaning assembly?
- Each item in the Single parts for rear window cleaning corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Windshield cleaning container by locating its position on the schematic, which then links to the official BMW part number 61688374557 for the Vehicle electrical system section.
