Switch unit, center console for BMW 3 Series E46 318i (2004)

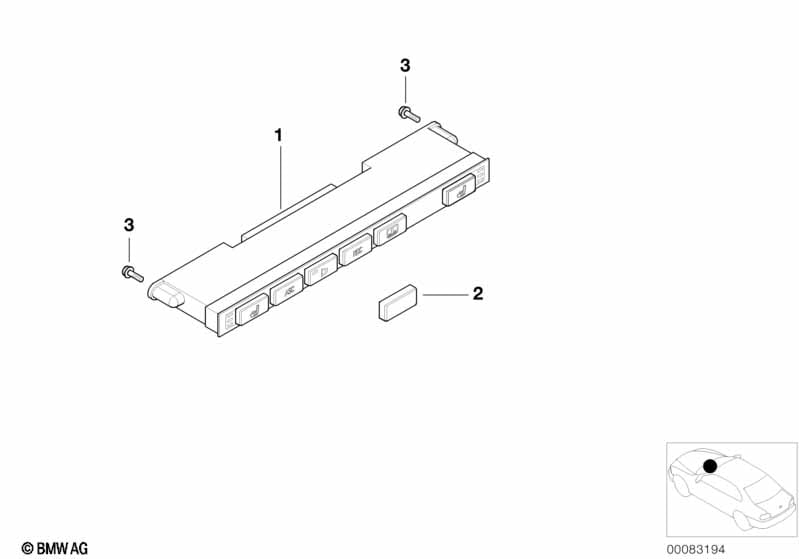

This Switch unit, center console technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Unused buttons should be covered with caps! |
|||||||||
| For vehicles with Dynamic stability control |
S210A=No |
|||||||||
| 01 | Switch unit, center console | 1 | 61316925498 | $191.73 | +core | Shop at ECS Tuning | ||||
| For vehicles with DSC |
=Yes |
|||||||||
| 01 | Switch unit, center console | 1 | 09/1999 | 61316925512 | $191.73 | +core | Shop at ECS Tuning | |||
| 02 | Covering cap | X | 61316905175 | $7.65 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | L=12MM | 2 | 51418215054 | $0.39 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Switch unit, center console?
- This technical diagram illustrates the Switch unit, center console within the Vehicle electrical system group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Switch unit, center console (Part #61316925498).
- Which models use the hardware listed in this Switch unit, center console?
- The hardware and components featured in the Switch unit, center console are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Switch unit, center console (61316925498) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch unit, center console assembly?
- Each item in the Switch unit, center console corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Switch unit, center console by locating its position on the schematic, which then links to the official BMW part number 61316925498 for the Vehicle electrical system section.
