Cigarette lighter/sockets for BMW 5 Series E60 LCI 535d (2009)

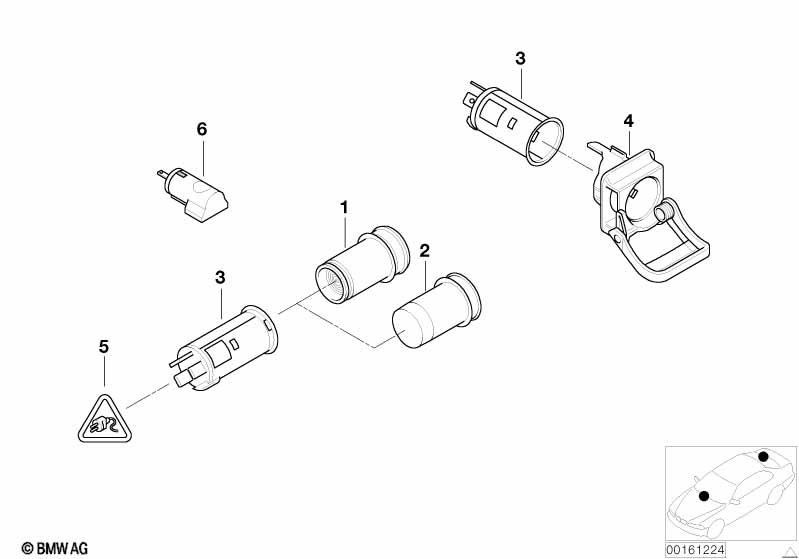

This Cigarette lighter/sockets technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 01 | Lighter element | 2 | 61349308246 | Shop at ECS Tuning | ||||||
| For vehicles with Smoker package |
S441A=No |
|||||||||
| 02 | Stopper plug-in socket | 1 | 61349316116 | Shop at ECS Tuning | ||||||
| 03 | Cigarette lighter socket | 2 POL. | 1 | 61346977681 | $12.75 | Shop at ECS Tuning | ||||
| 03 | Cigarette lighter socket | 2 | 61346973036 | $4.23 | Shop at ECS Tuning | |||||
| Installed in center armrest, rear | ||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 03 | Plug-in socket | 1 | 61346973037 | $3.78 | Shop at ECS Tuning | |||||
| 04 | Socket mount | 1 | 61346843098 | Shop at ECS Tuning | ||||||
| 05 | Plug housing | 2 POL. | 1 | 61131351144 | $0.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable socket female | 0,5-1,0 MM² | 4 | 61131362868 | $0.68 | Shop at ECS Tuning | ||||

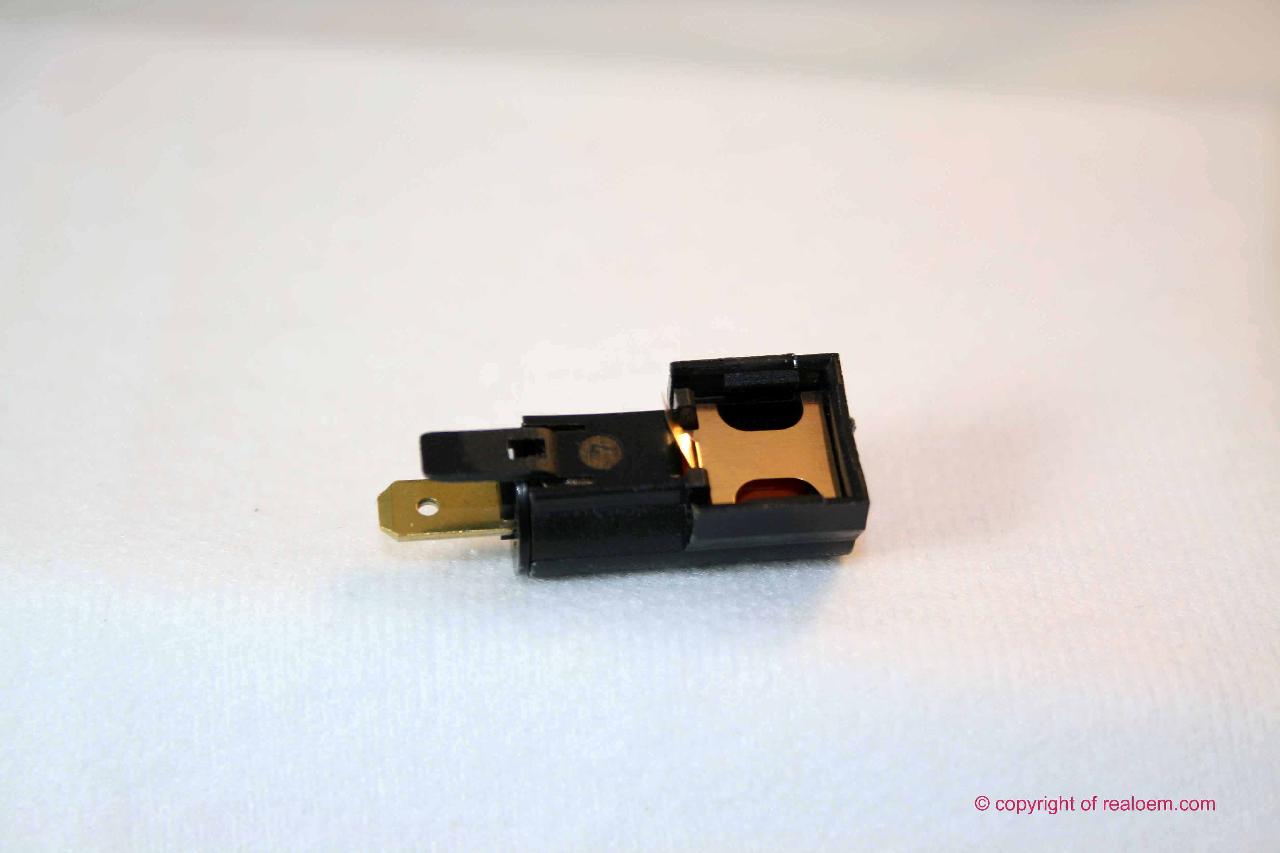

| 06 | Bulb socket | 1 | 03/2006 | 61316985895 | $5.98 | Shop at ECS Tuning | ||||
| incl. bulb | ||||||||||
