Windshield cleaning container for BMW Z8 E52 Z8

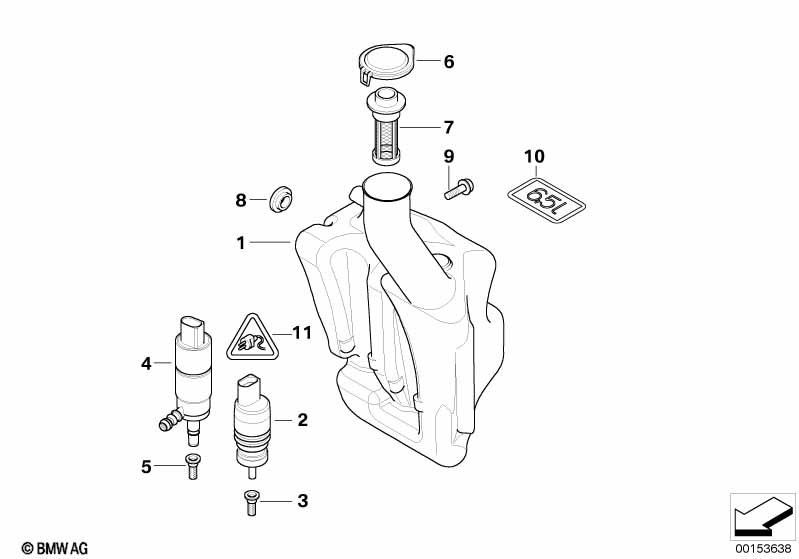

This Windshield cleaning container technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 1 | 61668377360 | $92.86 | +core | Shop at ECS Tuning | ||||
| 02 | Washer pump rear | 1 | 67128362154 | $42.75 | Shop at ECS Tuning | |||||
| 03 | Strainer f wash pump | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 04 | Wash pumpe f head lamp cleaning device | 1 | 67128377430 | $69.57 | Shop at ECS Tuning | |||||
| 05 | Strainer f wash pump | 1 | 61678374382 | $3.85 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 07 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 08 | Grommet | 1 | 61668360138 | $0.75 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X35 ZNS3 | 2 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 10 | Container filling capacity label | 6,5 L | 1 | 61677019543 | $4.67 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
