Ground cable for BMW 3 Series E46 318ti (2004)

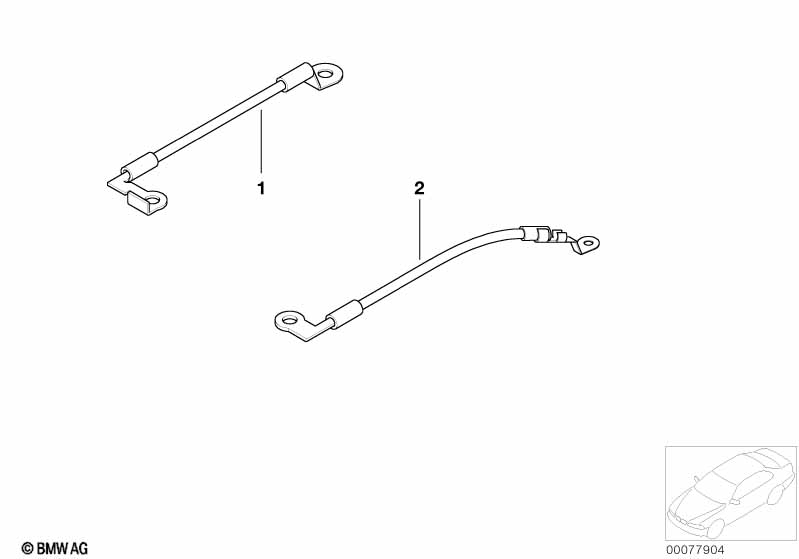

This Ground cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Earth strap, hinge/spoiler, right | 1 | 61126903956 | $7.02 | Shop at ECS Tuning | |||||
| 01 | Earth strap, hinge/spoiler, left | 1 | 61126903957 | $7.58 | Shop at ECS Tuning | |||||
| 02 | Earth strap, hinge/trunk lid, right | 1 | 61126903954 | $7.17 | Shop at ECS Tuning | |||||
| 02 | Earth strap, hinge/trunk lid, left | 1 | 61126903955 | $7.17 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318ti Ground cable?
- This technical diagram illustrates the Ground cable within the Vehicle electrical system group for the 3 Series E46 318ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Earth strap, hinge/spoiler, right (Part #61126903956).
- Which models use the hardware listed in this Ground cable?
- The hardware and components featured in the Ground cable are specific to the 3 Series E46 318ti produced during 2004. These technical specifications ensure that parts like the Earth strap, hinge/spoiler, right (61126903956) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ground cable assembly?
- Each item in the Ground cable corresponds to the numbered list below the illustration. For the 3 Series E46 318ti, you can identify the Earth strap, hinge/spoiler, right by locating its position on the schematic, which then links to the official BMW part number 61126903956 for the Vehicle electrical system section.
