Single parts for rear window wiper for BMW 3 Series E46 318ti (2004)

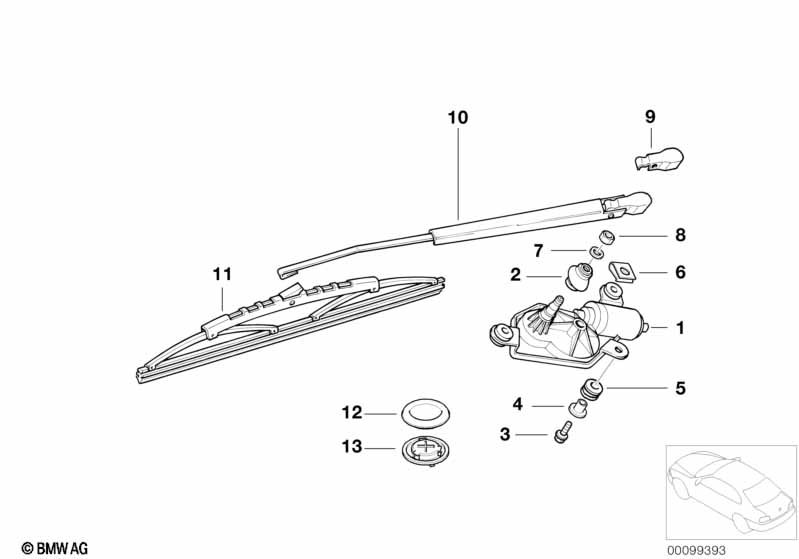

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window wiper motor | 1 | 67636925096 | Shop at ECS Tuning | ||||||
| 02 | Grommet | 1 | 61627001601 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M6X20-U2-8.8 | 3 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Bearing sleeve f rear window wiper motor | 3 | 61628214661 | $1.14 | Shop at ECS Tuning | |||||
| 05 | Damper ring f rear window wiper motor | 3 | 61628214659 | $2.27 | Shop at ECS Tuning | |||||
| 06 | C-clip nut | M6 | 3 | 07147151144 | $0.74 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Wiper arm cover | 1 | 61628357518 | $3.42 | Shop at ECS Tuning | |||||
| 10 | Rear window wiper arm | 1 | 61627009883 | Shop at ECS Tuning | ||||||
| 11 | Wiper blade | 1 | 61627009884 | Shop at ECS Tuning | ||||||
| For vehicles with Rear window wiper |
S315A=No |
|||||||||
| 12 | Plug | GRUNDIERT | 1 | 61612359953 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Nut | 1 | 61617074568 | Shop at ECS Tuning | ||||||
| -- | O-ring | 30X2,65-N-NBR70 | 1 | 07119905179 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
