Rollover sensor for BMW 3 Series E46 318Ci (2004)

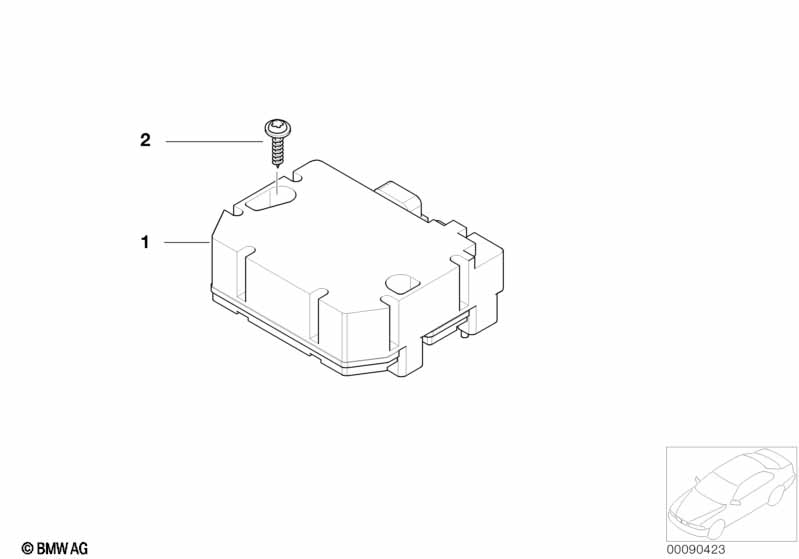

This Rollover sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rollover sensor | 1 | 67916918515 | $415.40 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | M6X18 | 3 | 67918366501 | $0.84 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318Ci Rollover sensor?
- This technical diagram illustrates the Rollover sensor within the Vehicle electrical system group for the 3 Series E46 318Ci produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Rollover sensor (Part #67916918515).
- Which models use the hardware listed in this Rollover sensor?
- The hardware and components featured in the Rollover sensor are specific to the 3 Series E46 318Ci produced during 2004. These technical specifications ensure that parts like the Rollover sensor (67916918515) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rollover sensor assembly?
- Each item in the Rollover sensor corresponds to the numbered list below the illustration. For the 3 Series E46 318Ci, you can identify the Rollover sensor by locating its position on the schematic, which then links to the official BMW part number 67916918515 for the Vehicle electrical system section.
