Steering column trim for BMW 7 Series E66 745Li (2005)

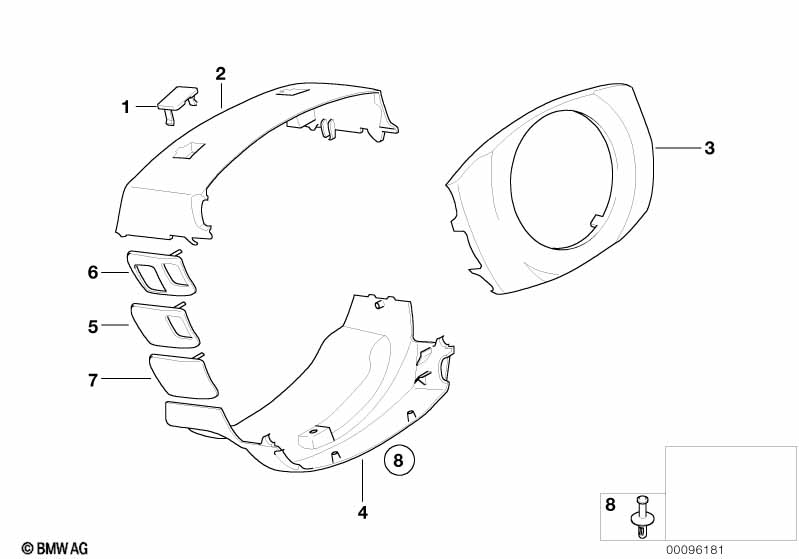

This Steering column trim technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 745Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering cap | BASALTGRAU | 2 | 61316914793 | $5.88 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering cap | DUNKELBEIGE | 2 | 61316914794 | $5.88 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering cap | NACHTBLAU | 2 | 61316914795 | $7.17 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering cap | SCHWARZ | 2 | 61316914796 | $5.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel upper part | BASALTGRAU | 1 | 61316911543 | $20.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel upper part | DUNKELBEIGE | 1 | 61316911544 | $20.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel upper part | NACHTBLAU | 1 | 61316911545 | $20.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel upper part | SCHWARZ | 1 | 61316911546 | $20.32 | ENDED | Shop at ECS Tuning | |||
| 03 | Front section of trim panel | BASALTGRAU | 1 | 61316911538 | $25.92 | ENDED | Shop at ECS Tuning | |||
| 03 | Front section of trim panel | DUNKELBEIGE | 1 | 61316911539 | $25.92 | Shop at ECS Tuning | ||||
| 03 | Front section of trim panel | NACHTBLAU | 1 | 61316911540 | $25.92 | ENDED | Shop at ECS Tuning | |||
| 03 | Front section of trim panel | SCHWARZ | 1 | 61316911541 | $25.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Lower trim panel | BASALTGRAU | 1 | 61316911548 | $25.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Lower trim panel | DUNKELBEIGE | 1 | 61316911549 | $25.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Lower trim panel | NACHTBLAU | 1 | 61316911550 | $25.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Lower trim panel | SCHWARZ | 1 | 61316911551 | $25.92 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 05 | Trim panel finisher | LHD BASALTGRAU | 1 | 61316911553 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim panel finisher | LHD DUNKELBEIGE | 1 | 61316911554 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim panel finisher | LHD NACHTBLAU | 1 | 61316911555 | $5.28 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim panel finisher | LHD SCHWARZ | 1 | 61316911556 | $4.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 06 | Trim panel finisher | LHD BASALTGRAU | 1 | 61316911557 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel finisher | LHD DUNKELBEIGE | 1 | 61316911558 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel finisher | LHD NACHTBLAU | 1 | 61316911559 | $2.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel finisher | LHD SCHWARZ | 1 | 61316911560 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Dummy panel | LHD BASALTGRAU | 1 | 61316911561 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Dummy panel | LHD DUNKELBEIGE | 1 | 61316911562 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Dummy panel | LHD NACHTBLAU | 1 | 61316911563 | $5.28 | ENDED | Shop at ECS Tuning | |||
| 07 | Dummy panel | LHD SCHWARZ | 1 | 61316911564 | $4.30 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 3 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
