Single components for wiper arm for BMW 5 Series E60 525i (2007)

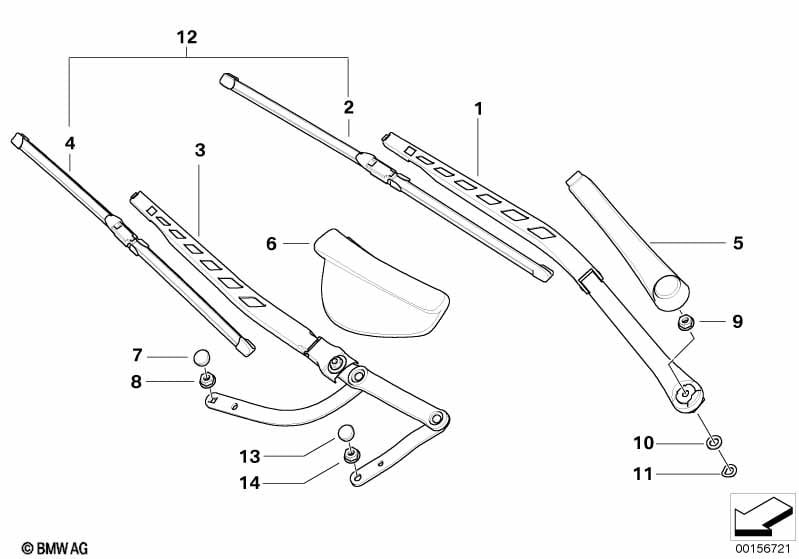

This Single components for wiper arm technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm left | 1 | 61619449959 | Shop at ECS Tuning | ||||||
| 03 | Wiper arm right | 1 | 61619449958 | Shop at ECS Tuning | ||||||
| 05 | Cap, wiper arm, left | 1 | 61617037356 | $2.47 | Shop at ECS Tuning | |||||
| 06 | Cap, wiper arm, right | 1 | 61617035103 | $4.37 | Shop at ECS Tuning | |||||
| 07 | Cover cap, window washer axle | 1 | 61615A3F9D8 | Shop at ECS Tuning | ||||||
| 08 | Flange nut, self-locking | M8 | 1 | 07147185682 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Hex nut | 1 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 10 | Wiper arm compensating disc | 1 | 61617049185 | $1.12 | Shop at ECS Tuning | |||||
| 11 | Adjusting plate | 1 | 61617037361 | $2.05 | Shop at ECS Tuning | |||||
| 12 | Set of wiper blades | 1 | 61612455442 | Shop at ECS Tuning | ||||||
| 13 | Wiper axle cover | 1 | 06/2006 | 61617185368 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Hex nut | 1 | 06/2006 | 07146971889 | $0.82 | Shop at ECS Tuning |
