Single wiper parts for BMW 5 Series E60 LCI 525i (2009)

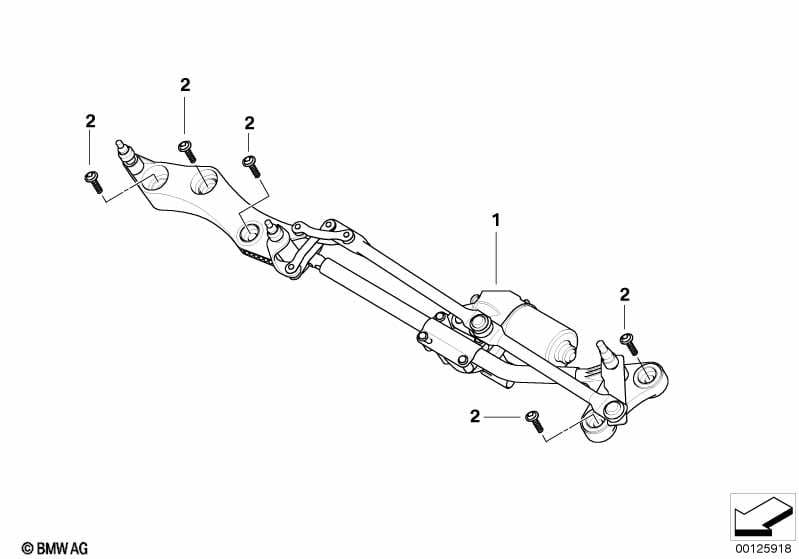

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper system, complete | 1 | 06/2006 | 61617194029 | $275.40 | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | 5 | 07146988521 | $0.68 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 525i Single wiper parts?
- This technical diagram illustrates the Single wiper parts within the Vehicle electrical system group for the 5 Series E60 LCI 525i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Wiper system, complete (Part #61617194029).
- Which models use the hardware listed in this Single wiper parts?
- The hardware and components featured in the Single wiper parts are specific to the 5 Series E60 LCI 525i produced during 2009. These technical specifications ensure that parts like the Wiper system, complete (61617194029) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single wiper parts assembly?
- Each item in the Single wiper parts corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 525i, you can identify the Wiper system, complete by locating its position on the schematic, which then links to the official BMW part number 61617194029 for the Vehicle electrical system section.
