Reserv.,windshield/headlight washer syst for BMW 5 Series E60 LCI 523i (2008)

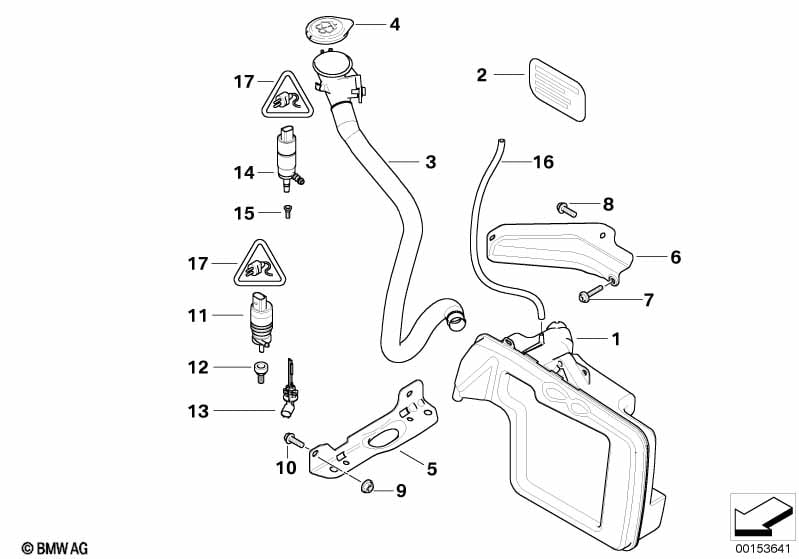

This Reserv.,windshield/headlight washer syst technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer fluid reservoir | 1 | 61667067107 | $47.69 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 01 | Washer fluid reservoir | 1 | 61677179453 | $47.69 | Shop at ECS Tuning | |||||
| 02 | Container filling capacity label | 3L | 1 | 61667079936 | $4.67 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 02 | Container filling capacity label | 5L | 1 | 61667079937 | $4.67 | Shop at ECS Tuning | ||||
| 03 | Connector f filler pipe | 1 | 61667144396 | $23.25 | Shop at ECS Tuning | |||||
| 04 | Cover f filler pipe | 1 | 61667375587 | Shop at ECS Tuning | ||||||
| 04 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 05 | Bracket, wash water container | 1 | 61667117645 | $6.68 | Shop at ECS Tuning | |||||
| 06 | Bracket, wash water container top | 1 | 61667209551 | $8.97 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X35-U2-8.8 | 1 | 07119903001 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X20-U2-8.8 | 2 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Hex nut | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | 4 | 07147115987 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Wash pump/fluid container | 1 | 09/2003 | 67127302589 | Shop at ECS Tuning | |||||
| 13 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 14 | Wash pumpe f head lamp cleaning device | 1 | 67128377430 | $69.57 | Shop at ECS Tuning | |||||
| 15 | Strainer f wash pump | 1 | 61678374382 | $3.85 | Shop at ECS Tuning | |||||
| 16 | Vent pipe | 1 | 61667067183 | $3.48 | Shop at ECS Tuning | |||||
| 17 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
