Horn for BMW 5 Series E60 LCI 525xi (2009)

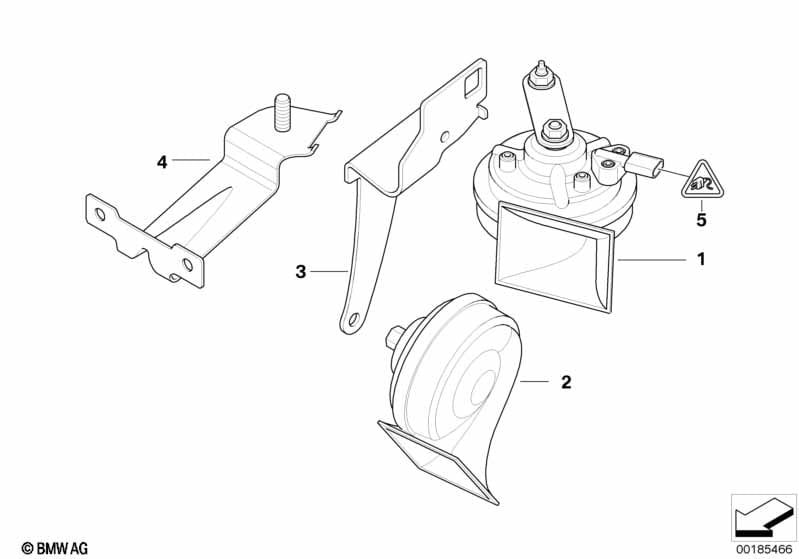

This Horn technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn, high pitch | 1 | 61336935987 | $42.63 | +core | Shop at ECS Tuning | ||||
| 02 | Horn, low pitch | 1 | 61336935988 | $42.63 | +core | Shop at ECS Tuning | ||||
| 03 | Bracket horn | 1 | 61336936335 | $13.28 | +core | Shop at ECS Tuning | ||||
| 05 | Universal socket housing uncoded | 2 POL. | 1 | 09/2010 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 09/2010 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/2010 | 61130056961 | Shop at ECS Tuning | ||||
| 05 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
