Control unit lights for BMW 5 Series E60 525i (2005)

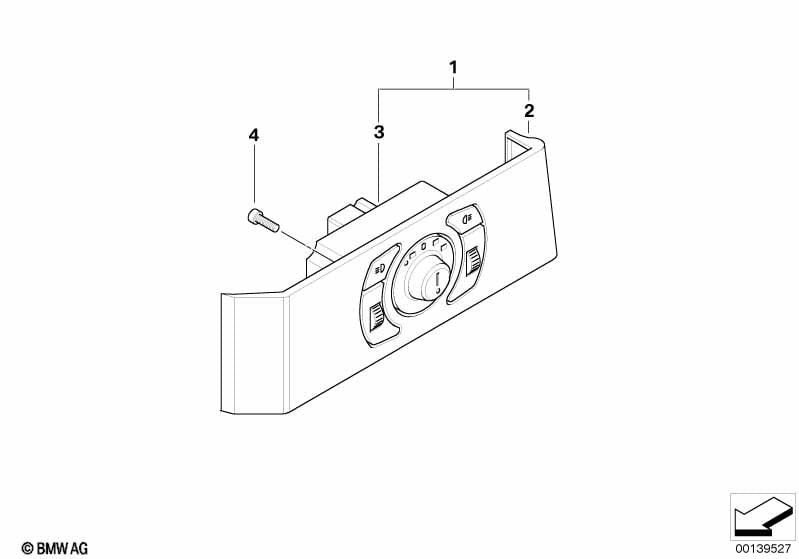

This Control unit lights technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with grey |
AD=Yes |
|||||||||
| 02 | Cover, light operating unit | BASALTGRAU | 1 | 09/2004 | 61316953624 | $46.97 | ENDED | Shop at ECS Tuning | ||
| For vehicles with anthracite or beige 3 or amethyst or kastanienbraun or Black or trüffel-braun |
AT=Yes BA=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 02 | Cover, light operating unit | SCHWARZ | 1 | 09/2004 | 03/2007 | 61316953623 | $46.97 | Shop at ECS Tuning | ||
| For vehicles with Xenon Light and Head-up display |
S522A=Yes S610A=No |
|||||||||
| 03 | Control unit lights | 1 | 61316925252 | $128.25 | Shop at ECS Tuning | |||||
| For vehicles with Xenon Light and Head-up display |
S522A=Yes S610A=Yes |
|||||||||
| 03 | Control unit lights | 1 | 61316925253 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display |
S522A=No S610A=Yes |
|||||||||
| 03 | Control unit lights | 1 | 61316925253 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display |
S522A=No S610A=No |
|||||||||
| 03 | Control unit lights | 1 | 61316925251 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=Yes S610A=No S611A=Yes |
|||||||||
| 03 | Control unit lights | 1 | 61316946319 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=No S610A=No S611A=Yes |
|||||||||
| 03 | Control unit lights | 1 | 61316946319 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=Yes S610A=Yes S611A=Yes |
|||||||||
| 03 | Control unit lights | 1 | 61316946339 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=No S610A=Yes S611A=Yes |
|||||||||
| 03 | Control unit lights | 1 | 61316946339 | Shop at ECS Tuning | ||||||
| 04 | Fillister-head screw | 4 | 07147143188 | $0.11 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
