Steering wheel electronic control for BMW 5 Series E60 525i (2005)

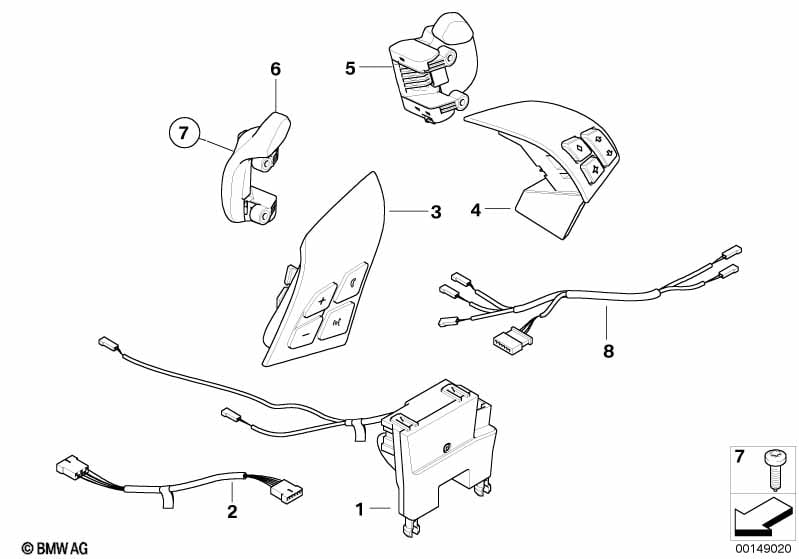

This Steering wheel electronic control technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Steering wheel heater and Sequential manual transmission (SMG) |
S248A=No S206A=Yes |
|||||||||
| 01 | Control unit, steering wheel electronics | 1 | 09/2005 | 61316953323 | $263.95 | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Sequential manual transmission (SMG) |
S248A=No S206A=No |
|||||||||
| 01 | Control unit, steering wheel electronics | 1 | 09/2005 | 61316953324 | $263.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Steering wheel heater and Sequential manual transmission (SMG) |
S248A=Yes S206A=No |
|||||||||
| 01 | Control unit, steering wheel electronics | 1 | 09/2005 | 61316953322 | $263.95 | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Sequential manual transmission (SMG) |
S248A=Yes S206A=Yes |
|||||||||
| 01 | Control unit, steering wheel electronics | 1 | 09/2005 | 61316953321 | $263.95 | Shop at ECS Tuning | ||||
| 02 | Tubing, coil spring | 1 | 61316927092 | $15.23 | Shop at ECS Tuning | |||||
| For vehicles with Sequential manual transmission (SMG) or Sports leather steering wheel or M leather steering wheel |
S206A=Yes S255A=Yes S710A=Yes |
|||||||||
| 03 | MFL switch, left | 1 | 03/2006 | 61316918496 | $88.20 | +core | Shop at ECS Tuning | |||
| For vehicles with Sequential manual transmission (SMG) and Sports leather steering wheel and M leather steering wheel |
S206A=No S255A=No S710A=No |
|||||||||
| 03 | MFL switch, left | 1 | 61316983295 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sequential manual transmission (SMG) or Sports leather steering wheel or M leather steering wheel |
S206A=Yes S255A=Yes S710A=Yes |
|||||||||
| 04 | MFL switch, right | 1 | 03/2006 | 61316918494 | $88.20 | +core | Shop at ECS Tuning | |||
| For vehicles with Sequential manual transmission (SMG) and Sports leather steering wheel and M leather steering wheel |
S206A=No S255A=No S710A=No |
|||||||||
| 04 | MFL switch, right | 1 | 61316983296 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
|||||||||
| 05 | Rocker-type shift lever, right | 1 | 07/2004 | 61316956278 | $293.39 | +core | Shop at ECS Tuning | |||
| 06 | Rocker-type shift lever, left | 1 | 07/2004 | 61316956277 | $293.39 | +core | Shop at ECS Tuning | |||
| 07 | Fastening set | 1 | 61316946204 | $19.28 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
