Switch adjuster steering column for BMW 5 Series E60 530xi (2007)

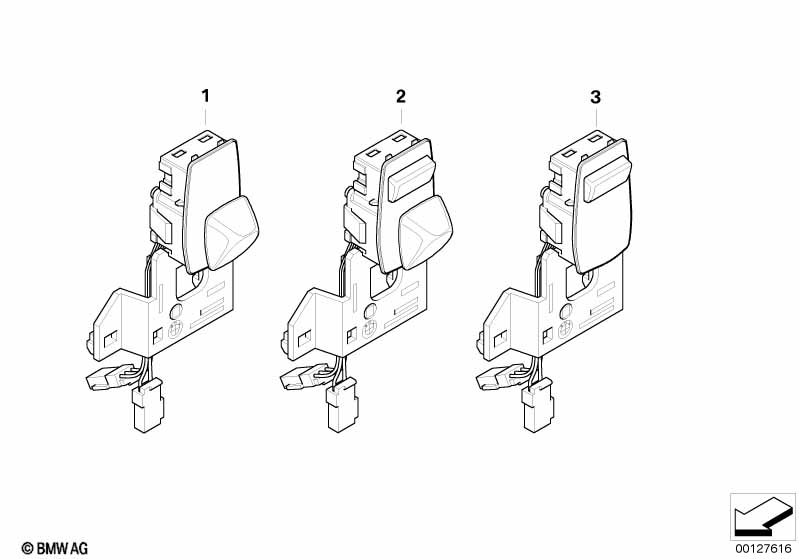

This Switch adjuster steering column technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 01 | Switch adjuster steering column | 1 | 61316947786 | $73.36 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Comfort seat with memory and Seat adjuster, electric, with memory |
S248A=Yes S456A=Yes S459A=No |
|||||||||
| 02 | Switch adjuster steering column | 1 | 61316947788 | $73.36 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Comfort seat with memory and Seat adjuster, electric, with memory |
S248A=Yes S456A=No S459A=Yes |
|||||||||
| 02 | Switch adjuster steering column | 1 | 61316947788 | $73.36 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 03 | Switch, steering wheel heater | 1 | 61316947787 | $80.19 | Shop at ECS Tuning | |||||
