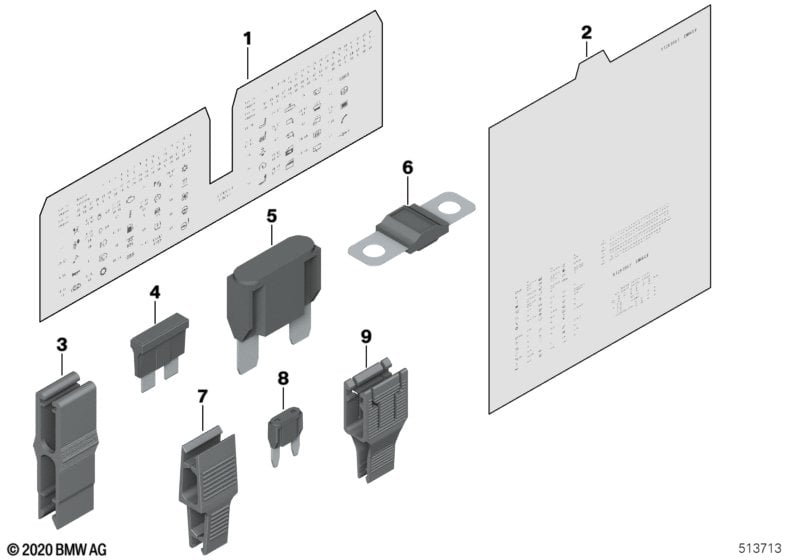

Fuses / sign with fuse allocat. diagr. for BMW 3 Series F30 316i (2015)
This Fuses / sign with fuse allocat. diagr. technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Map, fuse grouping | 1 | 12/2013 | 07/2015 | 61149337884 | Shop at ECS Tuning | ||||
| 04 | Fuse red | 10A | X | 07/2017 | 61131372525 | Shop at ECS Tuning | ||||
| 04 | Fuse | 10A | X | 61146953466 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fuse | 30A | X | 07/2017 | 61131372628 | $0.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Fuse green | 30A | X | 06/2020 | 61131372529 | Shop at ECS Tuning | ||||
| 04 | Fuse green | 30A | X | 61139826750 | Shop at ECS Tuning | |||||
| 04 | Fuse orange | 40A | X | 06/2020 | 61138364543 | $0.81 | Shop at ECS Tuning | |||
| 04 | Fuse orange | 40A | X | 61139826751 | Shop at ECS Tuning | |||||
| 04 | Fuse light brown | 5A | X | 61131372523 | Shop at ECS Tuning | |||||
| 04 | Fuse brown | 7,5A | X | 61131372524 | $0.58 | Shop at ECS Tuning | ||||
| 04 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 04 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 04 | Fuse white | 25A | X | 61131372528 | Shop at ECS Tuning | |||||
| 05 | Fuse Maxi, blue | 60A | X | 61136914636 | $2.15 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, orange | 40A | X | 61138367132 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, green | 30A | X | 61138367146 | $2.78 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, red | 50A | X | 61138367154 | $2.15 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, yellow | 20A | X | 61146940095 | $1.55 | Shop at ECS Tuning | ||||
| 06 | Fuse | 60A | X | 61136917405 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Fuse | 40A | X | 61136925855 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Fuse | 100A | X | 61138364631 | $2.93 | Shop at ECS Tuning | ||||
| 06 | Fuse | 50A | X | 61138365901 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Fuse | 80A | X | 61138365903 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Fuse | 200A | X | 61138365905 | $8.23 | Shop at ECS Tuning | ||||
| 06 | Fuse | 250A | X | 61138376386 | $10.22 | Shop at ECS Tuning | ||||
| 07 | Fuse clip | X | 61146936578 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Fuse Mini, rosa | 4A | X | 61136917400 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fuse Mini, yellow-brown | 5A | X | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fuse Mini, brown | 7,5A | X | 61136917402 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fuse Mini, red | 10A | X | 61136917403 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fuse Mini, blue | 15A | X | 61136917404 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fuse Mini, yellow | 20A | X | 61136942071 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
