Sensors and relays for BMW 5 Series E60 530xi (2007)

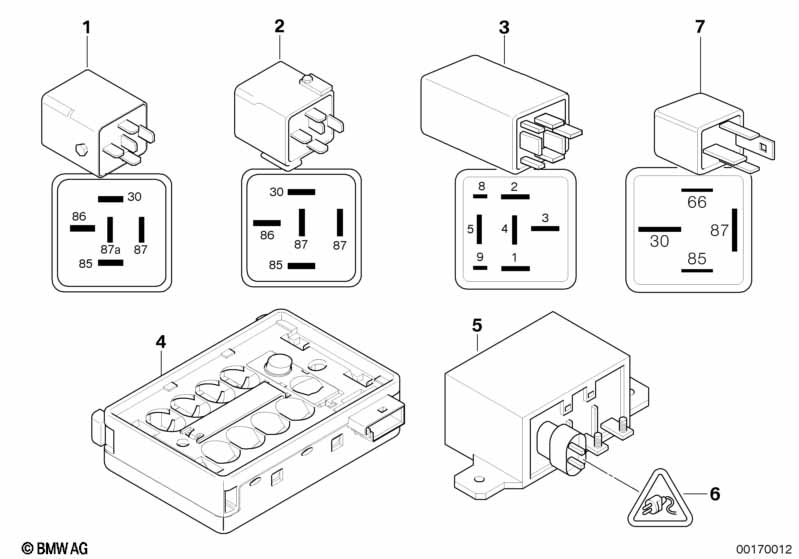

This Sensors and relays technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay changer salmon red | 1 | 12631742690 | $8.32 | Shop at ECS Tuning | |||||
| Ballast resistor for ignition coil | ||||||||||
| 02 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| Wiper relay | ||||||||||
| 03 | Double relay, green-brown | 1 | 61368384505 | $23.75 | Shop at ECS Tuning | |||||
| For vehicles with Head-up display |
S610A=No |
|||||||||
| 04 | Rain and light sensor | 1 | 61359120309 | $195.53 | Shop at ECS Tuning | |||||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 04 | Rain and light sensor | 1 | 61359120310 | $195.53 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Head-up display |
L807A=Yes S610A=No |
|||||||||
| 04 | Rain and light sensor | 1 | 03/2006 | 61356977276 | $195.53 | Shop at ECS Tuning | ||||
| 05 | Relay | 150A | 1 | 61367661503 | $73.85 | +core | Shop at ECS Tuning | |||
| 06 | Socket housing | 2 POL. | 1 | 61137699635 | $1.82 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 - 0,5MM² | X | 61137699637 | $0.42 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 0,75 - 1,5MM² | 9 | 61137699638 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Relay, make contact, black | LVA | 1 | 61366901469 | $13.96 | +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
