Various switches for BMW 5 Series E60 530i (2005)

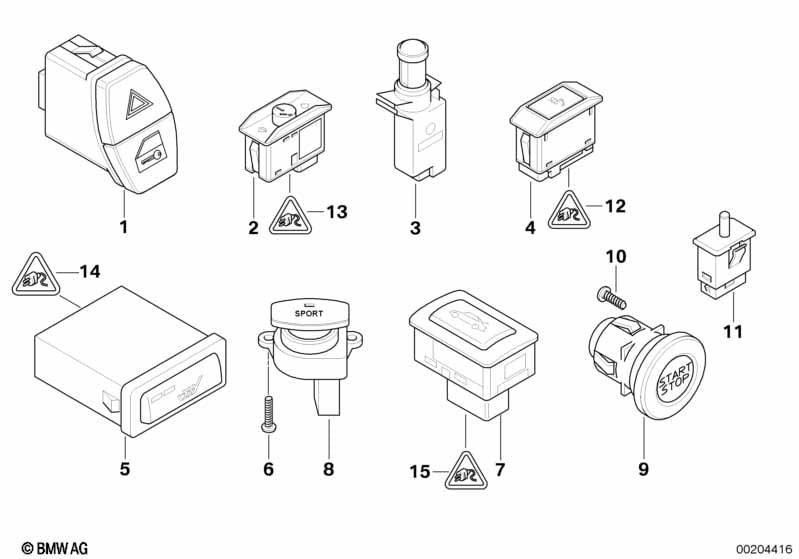

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch hazard warning/central lckng syst | 1 | 61316919506 | $48.12 | Shop at ECS Tuning | |||||
| 02 | Switch sliding roof | 1 | 61316907288 | $66.71 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 03 | Contact switch | 1 | 61319119052 | $14.12 | Shop at ECS Tuning | |||||
| For vehicles with Preparation, mobile phone, Business or Car telephone Professional or Preparation f mobile phone cpl. USA/CDN or Preparation f teleph.installation Japan |
S633A=Yes S638A=Yes S639A=Yes S646A=Yes |
|||||||||
| 04 | Emergency call pushbutton | 1 | 61316918478 | $73.75 | Shop at ECS Tuning | |||||
| 05 | Rear heatable seat switch | 2 | 61316988957 | $67.34 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | Trunk unlocking switch | 1 | 09/2005 | 61319200316 | Shop at ECS Tuning | |||||
| For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
|||||||||
| 08 | Switch FDC | 1 | 61316919507 | $73.75 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Switch FDC | 1 | 61316922799 | $73.75 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sequential manual transmission (SMG) |
S205A=No S206A=No |
|||||||||
| 08 | Switch FDC with cover | 1 | 61316922797 | ENDED, +core | Shop at ECS Tuning | |||||
| 11 | Switch | 1 | 61311388277 | ENDED | Shop at ECS Tuning | |||||
| Fitted in glove compartment | ||||||||||
| For vehicles with Preparation, mobile phone, Business or Car telephone Professional or Preparation f teleph.installation Japan |
S633A=Yes S638A=Yes S646A=Yes |
|||||||||
| 12 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 3 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 3 | 61130056960 | Shop at ECS Tuning | |||||
| 13 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 6 | 61130056960 | Shop at ECS Tuning | |||||
| 14 | Plug housing | 5 POL. KOD Z | 1 | 61136987108 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 1 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Lock | SCHWARZ | 1 | 61138364827 | $0.93 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 1 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| 15 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
