Door cable harnesses for BMW 5 Series E61 535d (2007)

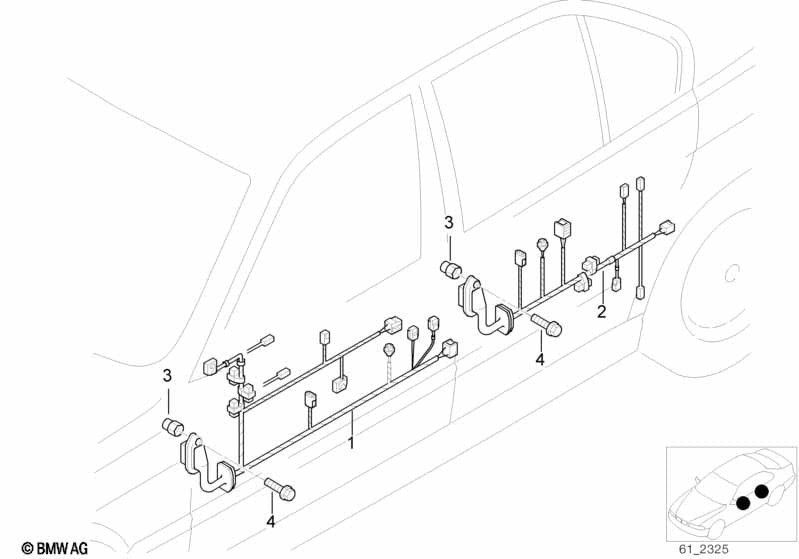

This Door cable harnesses technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring drivers side | 1 | 03/2006 | 03/2007 | 61126972562 | $102.50 | ENDED | Shop at ECS Tuning | ||
| 01 | Wiring co-drivers side | 1 | 03/2006 | 03/2007 | 61126972577 | $102.50 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior/outside mirror with auto dip or Comfort seat with memory or Seat adjuster, electric, with memory or Light package |
S430A=Yes S456A=Yes S459A=Yes S563A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 03/2006 | 03/2007 | 61126972569 | $102.50 | Shop at ECS Tuning | |||
| 01 | Wiring co-drivers side | 1 | 03/2006 | 03/2007 | 61126972584 | $138.60 | ENDED | Shop at ECS Tuning | ||
| 02 | Wiring rear | 2 | 03/2006 | 03/2007 | 61126972611 | $70.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Blind rivet nut, flat headed | M5 | 8 | 61136954561 | $0.63 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | 8 | 61136954557 | $0.79 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
