Repair cable main cable harness for BMW 5 Series E60 LCI 525i (2009)

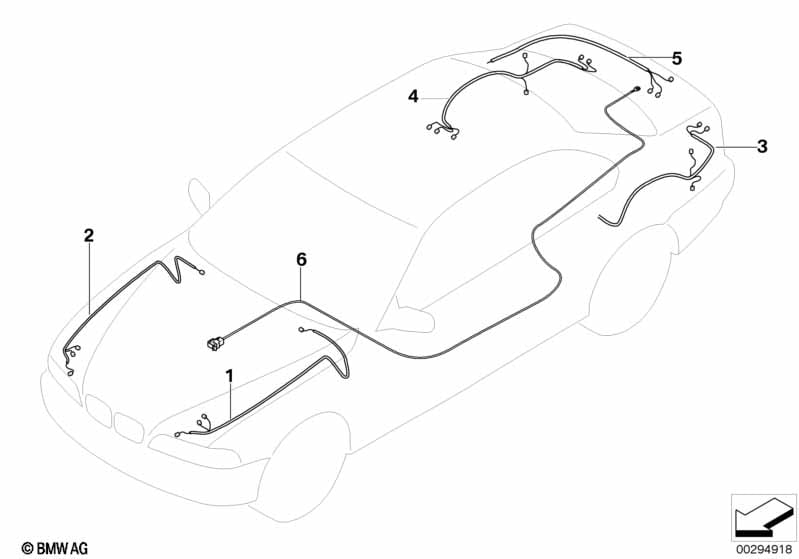

This Repair cable main cable harness technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left repair wiring set | 1 | 03/2009 | 61119238209 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2009 | 61116940863 | $88.95 | Shop at ECS Tuning | ||||
| 02 | Front right repair wiring set | 1 | 03/2009 | 61119238213 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2009 | 61116940864 | $88.95 | Shop at ECS Tuning | ||||
| 03 | Repair wiring set, rear left | 1 | 09/2008 | 61119227460 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 09/2008 | 61116940863 | $88.95 | Shop at ECS Tuning | ||||
| 04 | Repair wiring set rear right | 1 | 03/2009 | 61119238229 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2009 | 61116940864 | $88.95 | Shop at ECS Tuning | ||||
| 05 | Repair wiring set for trunk lid | 1 | 03/2009 | 61119238591 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2009 | 61116940863 | $88.95 | Shop at ECS Tuning | ||||
| 06 | B cable positive,power distributor front | L= 5070 MM | 1 | 61119243091 | Shop at ECS Tuning | |||||
| 06 | B+ wire fuse and relay module | L= 4470MM | 1 | 61112413451 | ENDED | Shop at ECS Tuning | ||||
| Includes the following connections: from X11014 fuse distributor to X13841S transfer battery voltage |
||||||||||
