Control unit lights for BMW 6 Series E64 LCI 635d (2010)

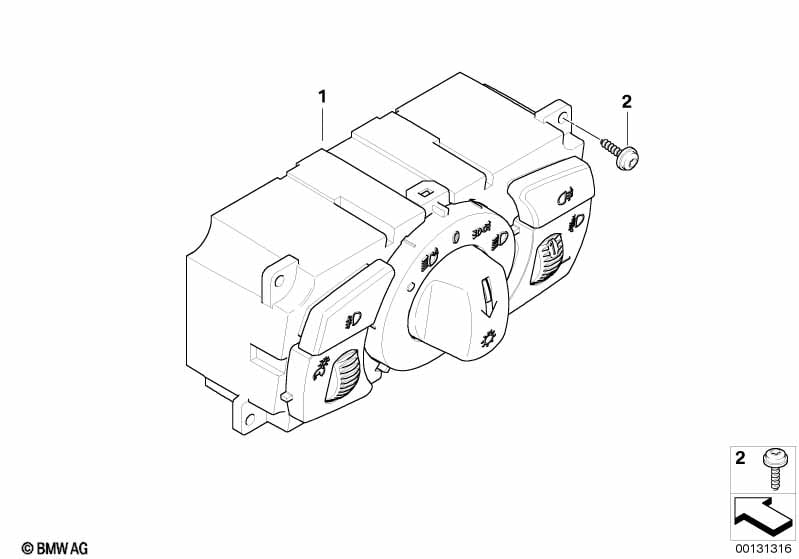

This Control unit lights technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Head-up display and BMW Night Vision |
S610A=Yes S611A=Yes |
|||||||||
| 01 | Control unit lights | 1 | 61316946339 | Shop at ECS Tuning | ||||||
| For vehicles with Head-up display and BMW Night Vision |
S610A=Yes S611A=No |
|||||||||
| 01 | Control unit lights | 1 | 61316925253 | Shop at ECS Tuning | ||||||
| For vehicles with Head-up display or BMW Night Vision |
S610A=No S611A=No |
|||||||||
| 01 | Control unit lights | 1 | 61316925252 | $128.25 | Shop at ECS Tuning | |||||
| For vehicles with Head-up display and BMW Night Vision |
S610A=No S611A=Yes |
|||||||||
| 01 | Control unit lights | 1 | 61316946319 | Shop at ECS Tuning | ||||||
| 02 | Fillister head screw with collar | 2,5X10MM | 4 | 07149110286 | $0.20 | Shop at ECS Tuning | ||||
