Single parts for windshield cleaning for BMW 6 Series E64 650i (2007)

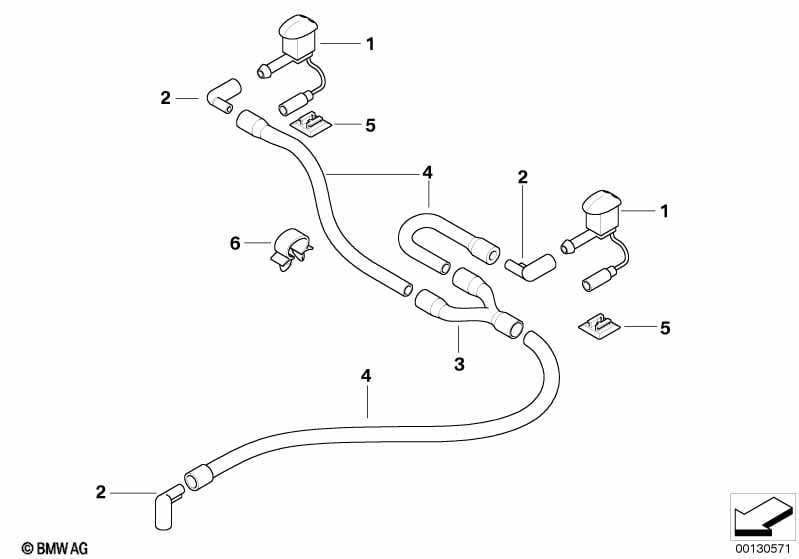

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spray nozzle | SCHWARZ MATT | 2 | 61667054445 | $37.35 | Shop at ECS Tuning | ||||
| 01 | Spray nozzle | SCHWARZ GLANZ | 2 | 61667054446 | $37.35 | Shop at ECS Tuning | ||||
| 01 | Windshield washer nozzle | CHROM | 2 | 61667054447 | $38.47 | Shop at ECS Tuning | ||||
| 02 | Support | 3 | 61668374371 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Distribution piece | 1 | 84337007222 | $1.15 | Shop at ECS Tuning | |||||
| 04 | Hose line | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 05 | Bracket, plug connection black | 2 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 06 | Cable holder | D=16,8MM | 1 | 12521276147 | $0.58 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 650i Single parts for windshield cleaning?
- This technical diagram illustrates the Single parts for windshield cleaning within the Vehicle electrical system group for the 6 Series E64 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Spray nozzle (Part #61667054445).
- Which models use the hardware listed in this Single parts for windshield cleaning?
- The hardware and components featured in the Single parts for windshield cleaning are specific to the 6 Series E64 650i produced during 2007. These technical specifications ensure that parts like the Spray nozzle (61667054445) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for windshield cleaning assembly?
- Each item in the Single parts for windshield cleaning corresponds to the numbered list below the illustration. For the 6 Series E64 650i, you can identify the Spray nozzle by locating its position on the schematic, which then links to the official BMW part number 61667054445 for the Vehicle electrical system section.
