Hose lines, headlight washer system for BMW 6 Series E64 645Ci (2005)

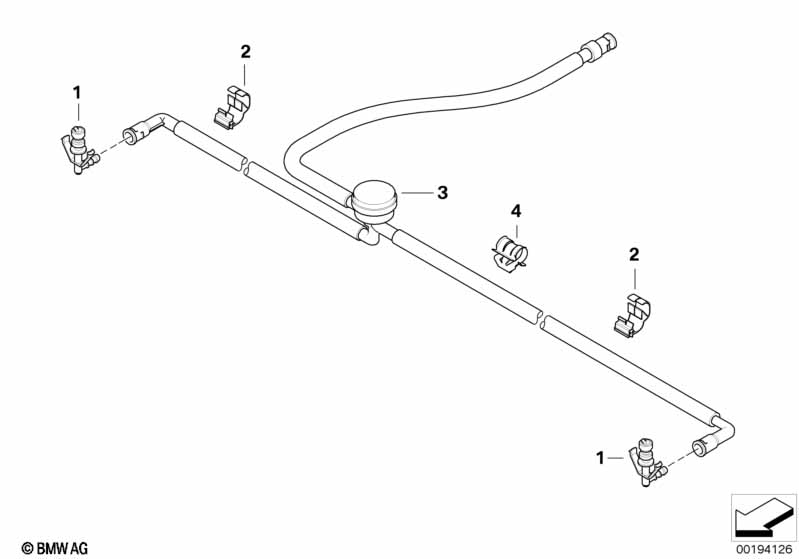

This Hose lines, headlight washer system technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spray nozzle | 2 | 61677059223 | $37.35 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | 2 | 07147129651 | $1.23 | Shop at ECS Tuning | |||||
| 03 | Hose line, headlight cleaning system | 1 | 09/2007 | 61677051372 | $49.55 | Shop at ECS Tuning | ||||
| For vehicles with BMW Night Vision |
S611A=Yes |
|||||||||
| 03 | Hose line | 1 | 09/2007 | 61677174596 | $42.00 | Shop at ECS Tuning | ||||
| 04 | Fixing clamp | 1 | 22111093424 | $0.24 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 645Ci Hose lines, headlight washer system?
- This technical diagram illustrates the Hose lines, headlight washer system within the Vehicle electrical system group for the 6 Series E64 645Ci produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Spray nozzle (Part #61677059223).
- Which models use the hardware listed in this Hose lines, headlight washer system?
- The hardware and components featured in the Hose lines, headlight washer system are specific to the 6 Series E64 645Ci produced during 2005. These technical specifications ensure that parts like the Spray nozzle (61677059223) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hose lines, headlight washer system assembly?
- Each item in the Hose lines, headlight washer system corresponds to the numbered list below the illustration. For the 6 Series E64 645Ci, you can identify the Spray nozzle by locating its position on the schematic, which then links to the official BMW part number 61677059223 for the Vehicle electrical system section.
