Single parts for rear window wiper for BMW 5 Series E61 525d

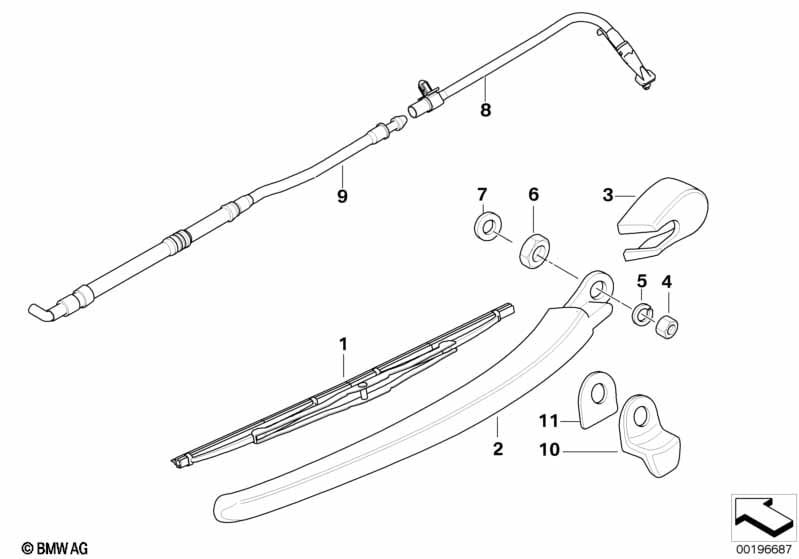

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper blade | 1 | 61627198552 | $26.44 | Shop at ECS Tuning | |||||
| 02 | Rear window wiper arm | 1 | 61627066173 | $34.15 | Shop at ECS Tuning | |||||
| 03 | Wiper arm cover | 1 | 61627066175 | $2.62 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex nut | 1 | 07147172628 | $2.35 | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 61627197857 | $0.18 | Shop at ECS Tuning | |||||
| 08 | Spray nozzle with hose | 1 | 61687123799 | $37.35 | Shop at ECS Tuning | |||||
| 09 | Rear wiper hose | 1 | 61687059208 | $32.82 | Shop at ECS Tuning | |||||
| 10 | Rear window key button with micro switch | 1 | 61319200673 | +core | Shop at ECS Tuning |
