Cable covering for BMW 6 Series E63 M6 (2010)

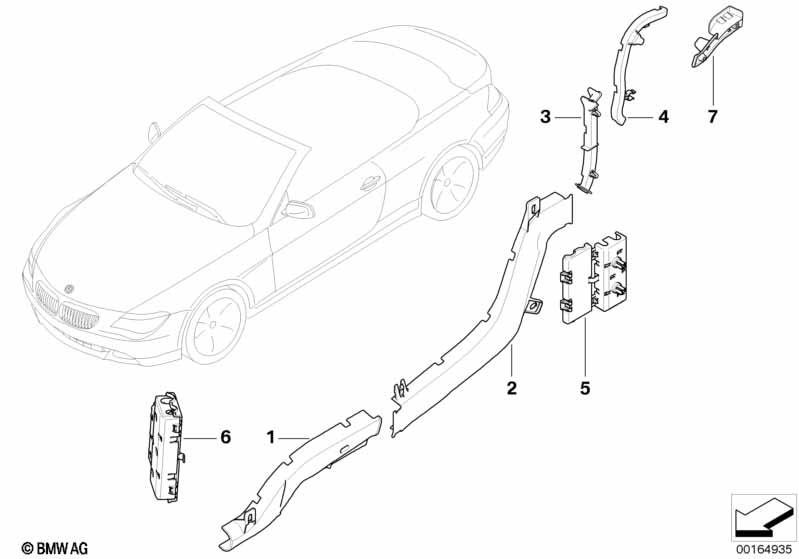

This Cable covering technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable covering f front left side member | 1 | 61136929353 | $2.62 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cable covering f front right side member | 1 | 61136929354 | $2.62 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear left cable covering | 1 | 61136929355 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear right cable covering | 1 | 61136929356 | $4.18 | Shop at ECS Tuning | |||||
| 03 | Front left cable covering | 1 | 61136929357 | $3.10 | Shop at ECS Tuning | |||||
| 03 | Front right cable covering | 1 | 61136929358 | $2.62 | Shop at ECS Tuning | |||||
| 04 | Cable cover, trunk lid hinge | 1 | 61136928742 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Plug-in connection bracket | 2 | 61136927793 | $3.52 | Shop at ECS Tuning | |||||
| 06 | Plug-in connection bracket | 2 | 61138372280 | $2.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
