Steering column trim, high for BMW 5 Series E60 530xi (2007)

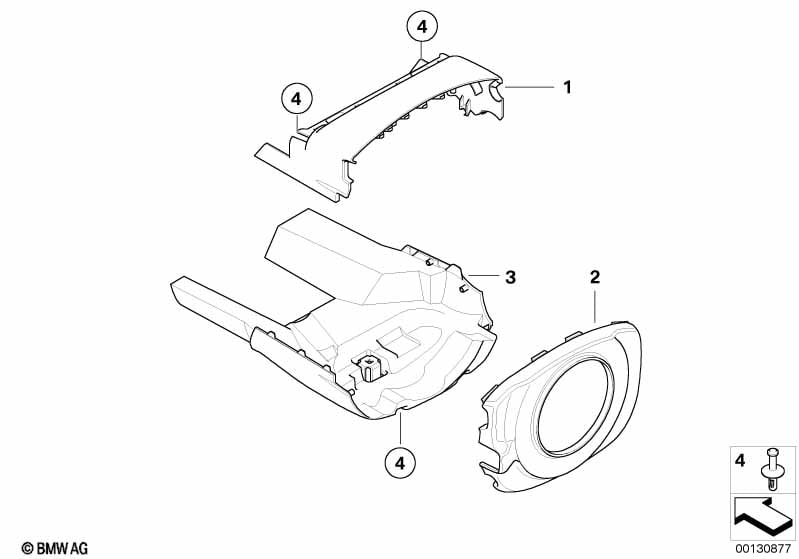

This Steering column trim, high technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active cruise control+Stop&Go function or Cruise control or Active cruise control or Cruise control with brake function |
S5DFA=Yes S540A=Yes S541A=Yes S544A=Yes |
||||||||
| 01 | Trim panel upper part | 1 | 12/2003 | 61316947772 | $17.52 | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Comfort seat with memory and Seat adjuster, electric, with memory |
S248A=No S456A=No S459A=No |
|||||||||
| 02 | Front section of trim panel | 1 | 12/2003 | 61316947773 | $17.52 | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater or Comfort seat with memory or Seat adjuster, electric, with memory |
S248A=Yes S456A=Yes S459A=Yes |
|||||||||
| 02 | Front section of trim panel | 1 | 12/2003 | 61316947775 | $25.70 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 03 | Lower trim panel | 1 | 12/2003 | 12/2009 | 61316947785 | $51.20 | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory |
S456A=No S459A=No |
|||||||||
| 03 | Lower trim panel | 1 | 12/2003 | 61316947778 | Shop at ECS Tuning | |||||

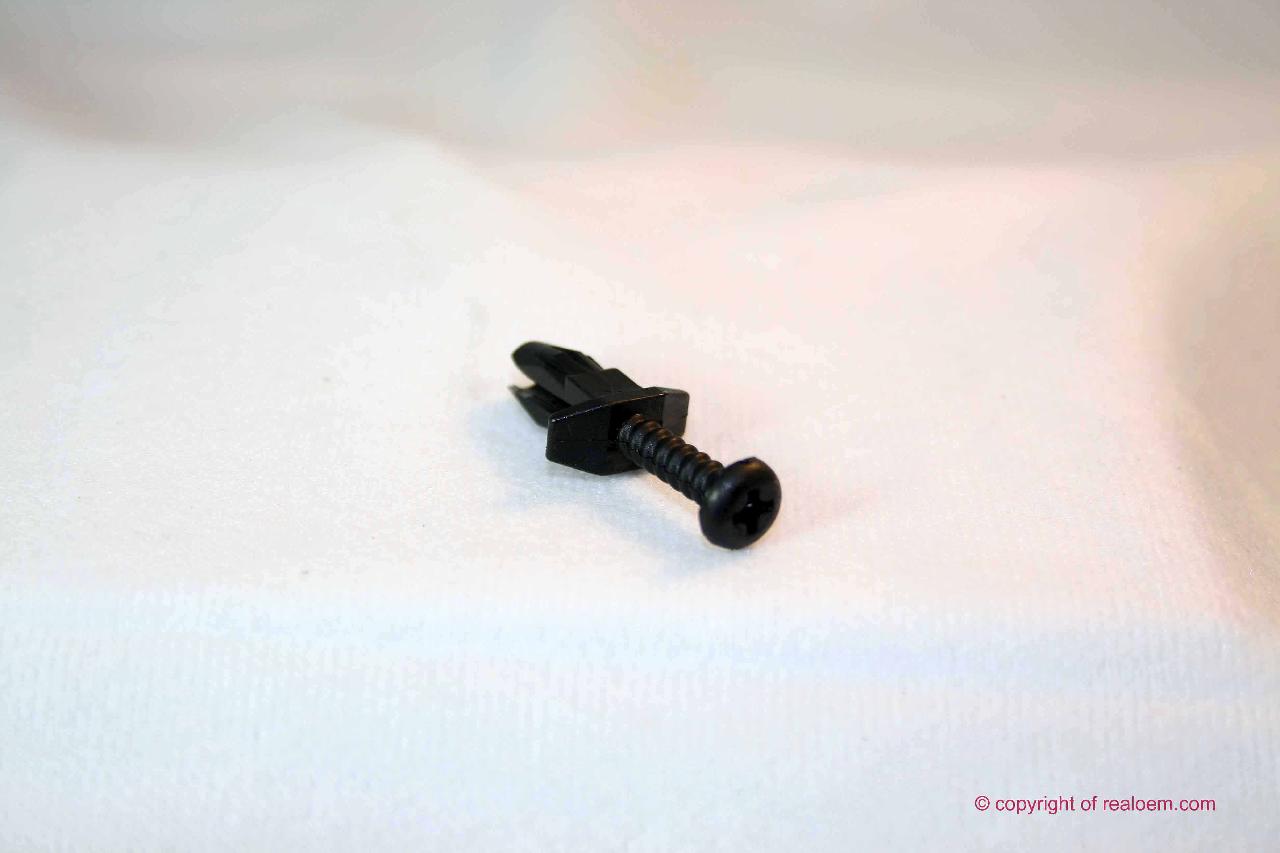

| 04 | Clamp | 3 | 12/2003 | 51131885399 | $0.35 | Shop at ECS Tuning | ||||
