Switch unit roof for BMW 1 Series E87 LCI 118d (2011)

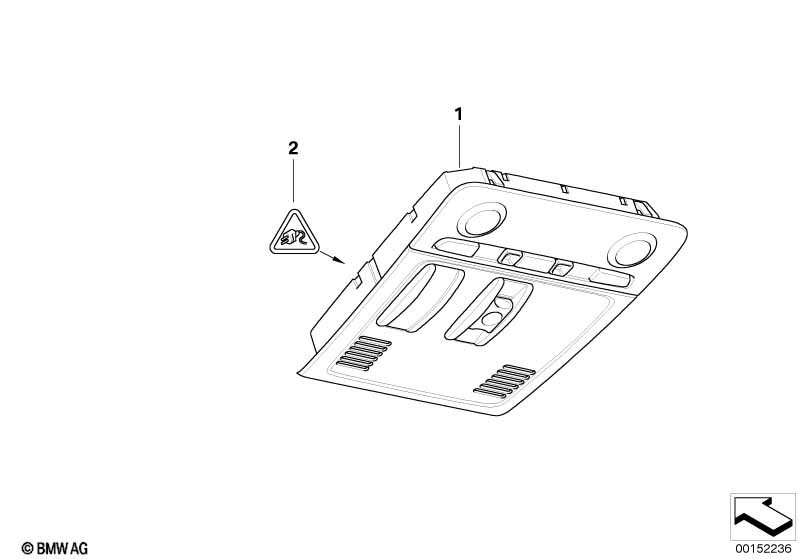

This Switch unit roof technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Preparation, mobile phone, Business and Car telephone Professional and Preparation f mobile phone cpl. USA/CDN and Preparation f teleph.installation Japan |
S633A=No S638A=No S639A=No S646A=No |
||||||||
| For vehicles with Glass roof, electrical and Airbag Off lamp |
S403A=Yes =Yes |
|||||||||
| 01 | Switch unit roof | ALASKAGRAU | 1 | 61319225523 | Shop at ECS Tuning | |||||
| 01 | Switch unit roof | BEIGE | 1 | 61319225524 | Shop at ECS Tuning | |||||
| 01 | Switch unit roof | SCHWARZ | 1 | 61319225527 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Airbag Off lamp |
S403A=No =Yes |
|||||||||
| 01 | Switch unit roof | ALASKAGRAU | 1 | 61319225485 | Shop at ECS Tuning | |||||
| 01 | Switch unit roof | BEIGE | 1 | 61319225486 | Shop at ECS Tuning | |||||
| 01 | Switch unit roof | SCHWARZ | 1 | 61319225489 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Isofix-System and Airbag Off lamp |
S403A=Yes S470A=No =No |
|||||||||
| 01 | Switch unit roof | ALASKAGRAU | 1 | 61319225517 | Shop at ECS Tuning | |||||
| 01 | Switch unit roof | BEIGE | 1 | 61319225518 | Shop at ECS Tuning | |||||
| 01 | Switch unit roof | SCHWARZ | 1 | 61319225521 | Shop at ECS Tuning | |||||
| X14287 | ||||||||||
| 02 | Socket housing | 4 POL. MPQ | 1 | 61136931890 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering cap | 1 | 61136925568 | $0.95 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 1 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 1 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | 1 | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
| X14289 | ||||||||||
| 02 | Socket housing | 20 POL. | 1 | 12521744631 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 1 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Covering cap | 20 POL. | 1 | 61136931878 | $4.05 | Shop at ECS Tuning | ||||
| X14286 | ||||||||||
| 02 | Socket housing | 14 POL. | 1 | 61136925562 | $0.72 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Covering cap | 14 POL. | 1 | 61136931962 | $2.20 | Shop at ECS Tuning | ||||
| X14288 | ||||||||||
| 02 | Socket housing | 20 POL. | 1 | 12521744631 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 1 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Covering cap | 20 POL. | 1 | 61136931878 | $4.05 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118d Switch unit roof?
- This technical diagram illustrates the Switch unit roof within the Vehicle electrical system group for the 1 Series E87 LCI 118d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Switch unit roof (Part #61319225523).
- Which models use the hardware listed in this Switch unit roof?
- The hardware and components featured in the Switch unit roof are specific to the 1 Series E87 LCI 118d produced during 2011. These technical specifications ensure that parts like the Switch unit roof (61319225523) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch unit roof assembly?
- Each item in the Switch unit roof corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118d, you can identify the Switch unit roof by locating its position on the schematic, which then links to the official BMW part number 61319225523 for the Vehicle electrical system section.
