Bracket f body control units and modules for BMW 3 Series E90 320d (2007)

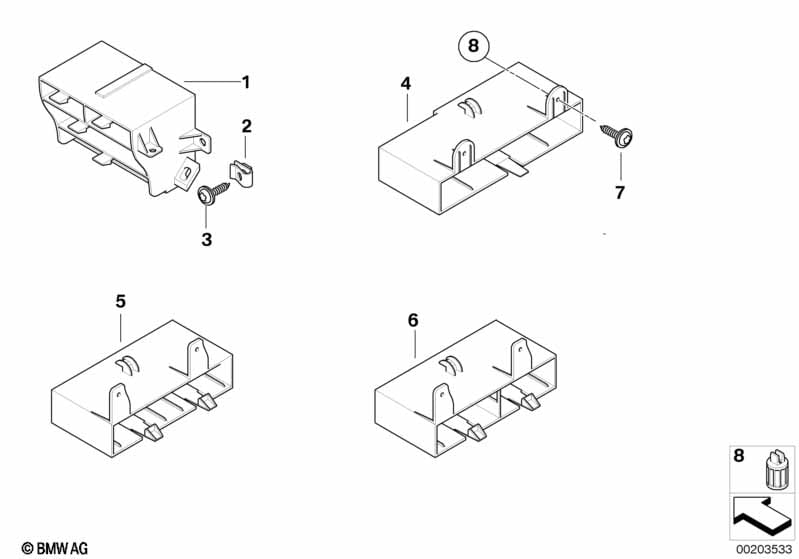

This Bracket f body control units and modules technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tire pressure display or Electronic Damper Control (EDC) or Towing hitch, detachable or Comfort access or Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S2VBA=Yes S223A=No S235A=Yes S322A=Yes S507A=Yes S508A=Yes |
|||||||||
| 01 | Bracket for module | 1 | 61359174260 | $8.45 | Shop at ECS Tuning | |||||
| 02 | Body nut | ST4.8 ZNS3 | 1 | 07146979392 | $0.24 | Shop at ECS Tuning | ||||
| 03 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 1 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | 1 | 65206922558 | $0.57 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Bracket f body control units and modules?
- This technical diagram illustrates the Bracket f body control units and modules within the Vehicle electrical system group for the 3 Series E90 320d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Bracket for module (Part #61359174260).
- Which models use the hardware listed in this Bracket f body control units and modules?
- The hardware and components featured in the Bracket f body control units and modules are specific to the 3 Series E90 320d produced during 2007. These technical specifications ensure that parts like the Bracket for module (61359174260) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bracket f body control units and modules assembly?
- Each item in the Bracket f body control units and modules corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Bracket for module by locating its position on the schematic, which then links to the official BMW part number 61359174260 for the Vehicle electrical system section.
