Single parts for rear window wiper for BMW 1 Series E87 118d (2007)

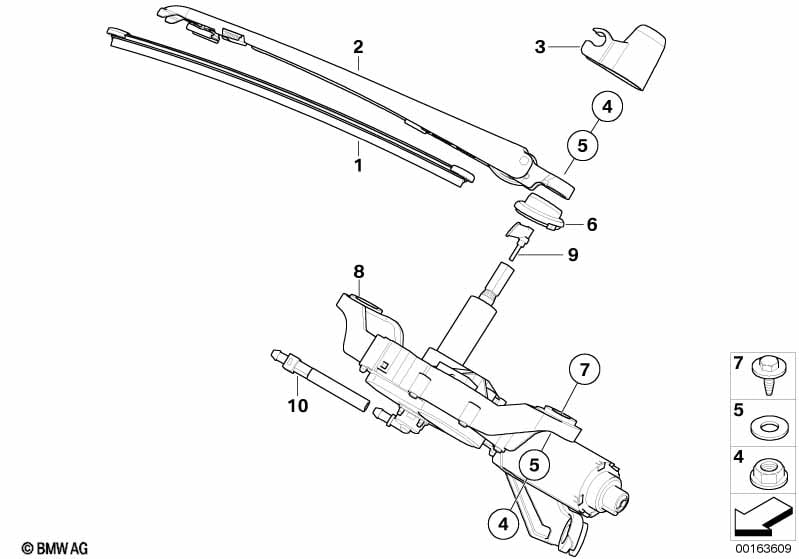

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper blade | 1 | 61627138508 | $22.72 | Shop at ECS Tuning | |||||
| 02 | Rear window wiper arm | 1 | 61629449913 | Shop at ECS Tuning | ||||||
| 03 | Wiper arm cover | 1 | 61627199566 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Grommet | 1 | 61627061857 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X20 | 3 | 07147151867 | $0.65 | Shop at ECS Tuning | ||||
| When installed in vehicles manufactured before 03/2007 the non-return valve 7 037 730 must be removed. |
||||||||||
| 08 | Rear window wiper motor | 1 | 03/2007 | 67637199569 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spray nozzle f rear window cleaning | 1 | 03/2007 | 61687199568 | Shop at ECS Tuning | |||||
| -- | Connection piece | 1 | 03/2007 | 61688252747 | $1.35 | Shop at ECS Tuning | ||||
| -- | Hose line | X | 03/2007 | 61668362762 | $2.92 | Shop at ECS Tuning | ||||
| -- | Wiper arm cover | 1 | 03/2007 | 61627199566 | Shop at ECS Tuning | |||||
| 09 | Spray nozzle f rear window cleaning | 1 | 03/2007 | 67637194798 | Shop at ECS Tuning | |||||
| 10 | non-return valve | 1 | 03/2007 | 61687037730 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
