Wiper arm/wiper blade for BMW 1 Series E87 118d (2007)

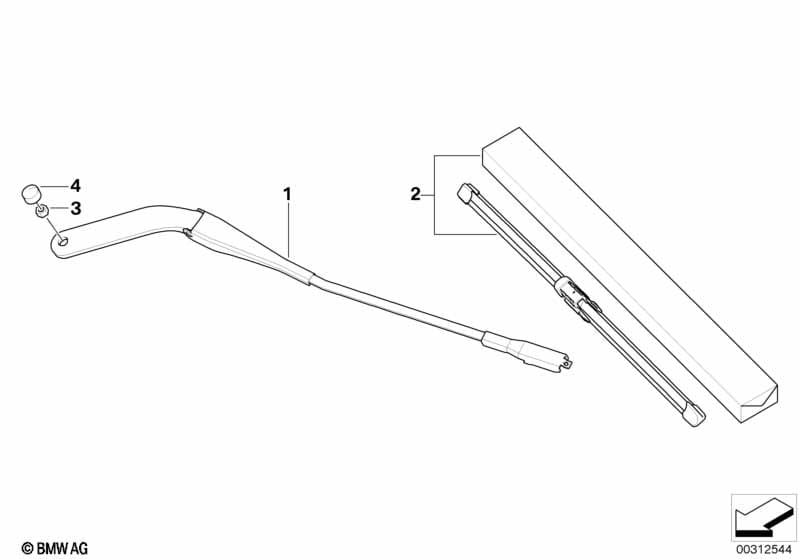

This Wiper arm/wiper blade technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm, driver's side | 1 | 61619450003 | Shop at ECS Tuning | ||||||
| 01 | Wiper arm, passenger's side | 1 | 61619450004 | Shop at ECS Tuning | ||||||
| 02 | Set of wiper blades | 1 | 61610420549 | $47.94 | ENDED | Shop at ECS Tuning | ||||
| 02 | Kit wiper blades | LL | 1 | 61615A87C97 | Shop at ECS Tuning | |||||
| 03 | Hex nut | 2 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 04 | Covering cap | 2 | 52108119867 | $0.21 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
