Battery lead/distribution box, rear for BMW 1 Series E87 LCI 123d (2011)

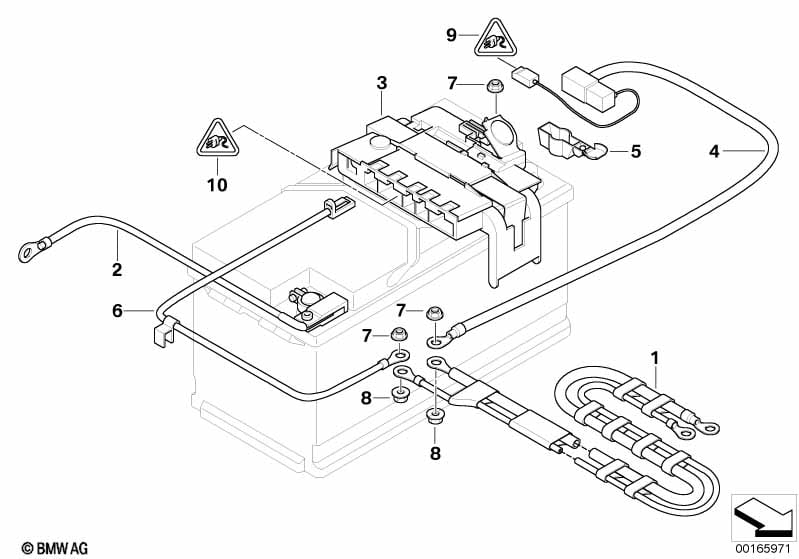

This Battery lead/distribution box, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Observe repair instructions "Repairing airbag lines" (REP-A LG-RAE3661-HINW19 - V.5). |
|||||||||
| 01 | Positive battery lead | 1 | 61129205479 | Shop at ECS Tuning | ||||||
| 02 | Battery cable negative | 1 | 61129255047 | Shop at ECS Tuning | ||||||
| For vehicles with Auto start/stop function or Brake Energy Regeneration or Navigation system Business or Navigation system Professional or Preparation f mobile phone cpl. USA/CDN |
S1CCA=Yes S1CDA=Yes S606A=Yes S609A=Yes S639A=Yes |
|||||||||
| 02 | Battery cable, negative, IBS | 1 | 03/2011 | 61127618677 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adapter for IBS | 2010 | 1 | 03/2011 | 12517615476 | Shop at ECS Tuning | ||||
| 03 | Power distribution box w fuse | 1 | 61146971370 | $46.70 | Shop at ECS Tuning | |||||
| 04 | Battery cable (plus pole) | SBK | 1 | 03/2006 | 61129217017 | Shop at ECS Tuning | ||||
| 05 | Cover positive battery terminal | 1 | 61136931503 | $2.08 | Shop at ECS Tuning | |||||
| 06 | Positive battery lead | 1 | 61126929715 | Shop at ECS Tuning | ||||||
| 07 | Flange nut | M8 | X | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8 | 1 | 07147133889 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-A2-70 | X | 07119904920 | $1.29 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package or Auto start/stop function or Brake Energy Regeneration or Navigation system Business or Navigation system Professional |
S1CBA=Yes S1CCA=Yes S1CDA=Yes S606A=Yes S609A=Yes |
|||||||||
| 09 | Universal pin terminal uncoded | 3 POL. | 1 | 61136931929 | $2.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact pin MQS | 0,2-0,35MM²/SN | 1 | 61131383672 | $0.42 | Shop at ECS Tuning | ||||
| -- | Contact pin MQS | 0,5-0,75MM² /SN | 1 | 61131393723 | $0.42 | Shop at ECS Tuning | ||||
| 10 | Universal socket housing MAK8, uncoded | 2 POL. | X | 61136925166 | $1.22 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 10 | Universal socket housing MAK8, uncoded | 1 POL. | X | 61136925176 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flat-type connector MAK8 | 2,5-4MM² | X | 61136920092 | $1.90 | Shop at ECS Tuning | ||||
| -- | Flat-type connector MAK8 | 6-10MM² | X | 61136920094 | Shop at ECS Tuning | |||||
