Cable covering for BMW 6 Series E63 650i (2007)

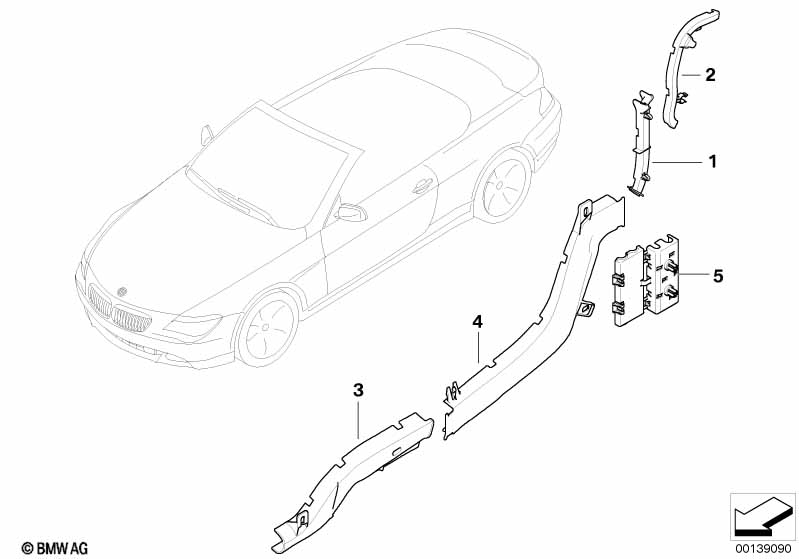

This Cable covering technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left cable covering | 1 | 61136929357 | $3.10 | Shop at ECS Tuning | |||||
| 01 | Front right cable covering | 1 | 61136929358 | $2.62 | Shop at ECS Tuning | |||||
| 02 | Cable cover, trunk lid hinge | 1 | 61136928742 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable covering f front left side member | 1 | 61136929353 | $2.62 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rear left cable covering | 1 | 61136929355 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rear right cable covering | 1 | 61136929356 | $4.18 | Shop at ECS Tuning | |||||
| 05 | Plug-in connection bracket | 1 | 61136927793 | $3.52 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 650i Cable covering?
- This technical diagram illustrates the Cable covering within the Vehicle electrical system group for the 6 Series E63 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Front left cable covering (Part #61136929357).
- Which models use the hardware listed in this Cable covering?
- The hardware and components featured in the Cable covering are specific to the 6 Series E63 650i produced during 2007. These technical specifications ensure that parts like the Front left cable covering (61136929357) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable covering assembly?
- Each item in the Cable covering corresponds to the numbered list below the illustration. For the 6 Series E63 650i, you can identify the Front left cable covering by locating its position on the schematic, which then links to the official BMW part number 61136929357 for the Vehicle electrical system section.
