Door cable harnesses for BMW 3 Series E90 318i (2008)

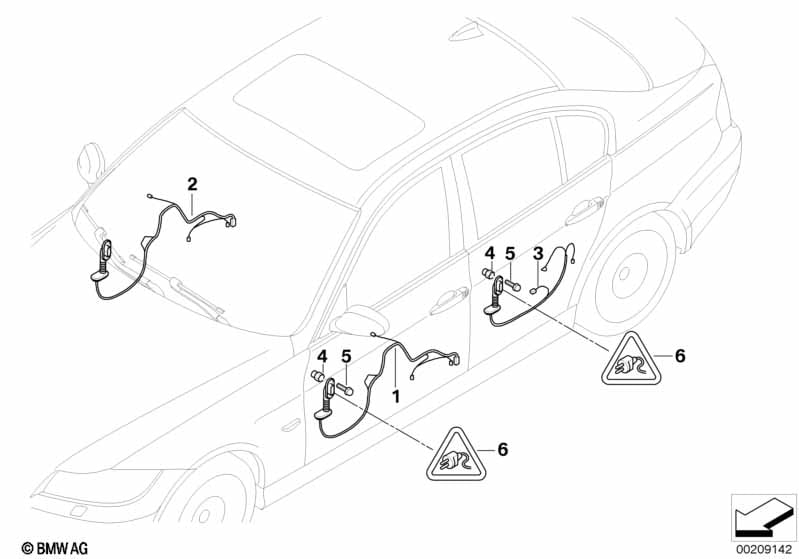

This Door cable harnesses technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring drivers side | 1 | 09/2009 | 61126938215 | $75.58 | Shop at ECS Tuning | ||||
| 02 | Wiring co-drivers side | 1 | 09/2009 | 61126947094 | $78.68 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror or Interior/outside mirror with auto dip or Seat adjuster, electric, with memory |
S313A=Yes S430A=Yes S459A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 09/2009 | 61126947096 | $78.68 | Shop at ECS Tuning | ||||
| 03 | Wiring set rear door | 2 | 61126938226 | $43.30 | Shop at ECS Tuning | |||||
| 04 | Blind rivet nut, flat headed | M5 | 4 | 61136954561 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | 4 | 61136954557 | $0.79 | Shop at ECS Tuning | |||||
| 06 | Socket housing | 32 POL. | 4 | 61136925544 | Shop at ECS Tuning | |||||
| on main wiring harness | ||||||||||
| 06 | Pin terminal | 32 POL. | 4 | 61136925543 | $2.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact pin MQS | 0,2-0,35MM²/SN | 4 | 61131383672 | $0.42 | Shop at ECS Tuning | ||||
| -- | Contact pin MQS | 0,5-0,75MM² /SN | 4 | 61131393723 | $0.42 | Shop at ECS Tuning | ||||
| -- | Covering cap | 4 | 61136925542 | $1.12 | Shop at ECS Tuning | |||||
| -- | Pin terminal | 4 POL. | 4 | 61136925545 | $0.98 | Shop at ECS Tuning | ||||
| -- | Slider | 4 | 61136925547 | $0.68 | Shop at ECS Tuning | |||||
| -- | Pin-contact ELO-Power 2,8 x 0,63 | 0,5-1,0MM² | 4 | 61138364833 | $0.77 | Shop at ECS Tuning | ||||
| -- | Pin-contact ELO-Power 2,8 x 0,63 | 1,0-2,5MM² | 4 | 61138364835 | $0.72 | Shop at ECS Tuning | ||||
