battery holder and mounting parts for BMW 1 Series E87 LCI 118d (2011)

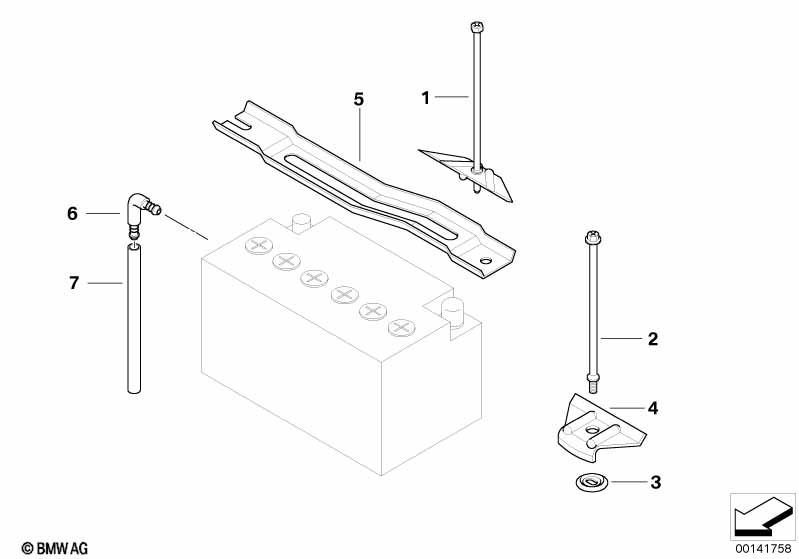

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex screw with collar | M6/ 26,5MM | 1 | 04/2008 | 07147211160 | $1.36 | Shop at ECS Tuning | |||
| 03 | O-ring | 5X2 | 1 | 11421284113 | $0.79 | Shop at ECS Tuning | ||||
| 04 | Battery hold down | 1 | 61217631587 | Shop at ECS Tuning | ||||||
| 05 | Rollover protection | 1 | 61216934210 | Shop at ECS Tuning | ||||||
| 06 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Hose running meter | X | 61211377745 | $1.97 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118d battery holder and mounting parts?
- This technical diagram illustrates the battery holder and mounting parts within the Vehicle electrical system group for the 1 Series E87 LCI 118d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Hex screw with collar (Part #07147211160).
- Which models use the hardware listed in this battery holder and mounting parts?
- The hardware and components featured in the battery holder and mounting parts are specific to the 1 Series E87 LCI 118d produced during 2011. These technical specifications ensure that parts like the Hex screw with collar (07147211160) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the battery holder and mounting parts assembly?
- Each item in the battery holder and mounting parts corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118d, you can identify the Hex screw with collar by locating its position on the schematic, which then links to the official BMW part number 07147211160 for the Vehicle electrical system section.
