Wiper system, complete for BMW 3 Series E90 LCI 330i (2011)

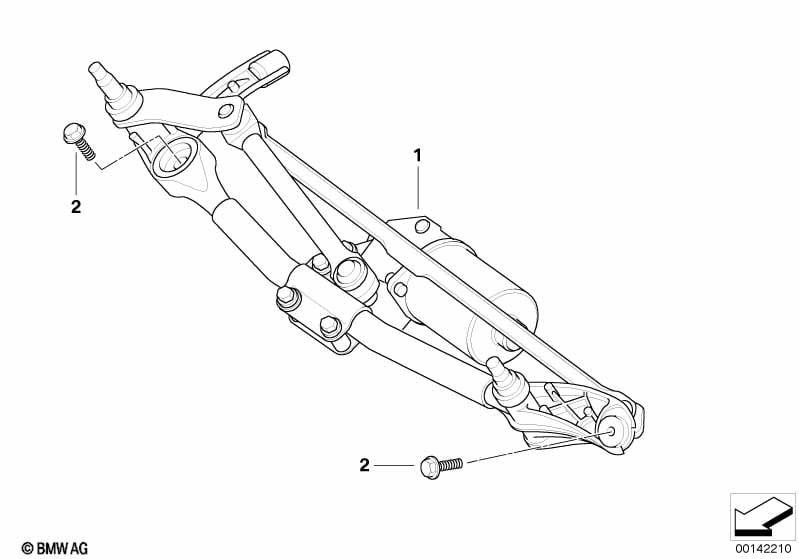

This Wiper system, complete technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper system, complete | 1 | 61617161710 | $194.18 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X30-U2-ZNS3 | 2 | 07119903994 | $0.65 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 330i Wiper system, complete?
- This technical diagram illustrates the Wiper system, complete within the Vehicle electrical system group for the 3 Series E90 LCI 330i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Wiper system, complete (Part #61617161710).
- Which models use the hardware listed in this Wiper system, complete?
- The hardware and components featured in the Wiper system, complete are specific to the 3 Series E90 LCI 330i produced during 2011. These technical specifications ensure that parts like the Wiper system, complete (61617161710) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiper system, complete assembly?
- Each item in the Wiper system, complete corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 330i, you can identify the Wiper system, complete by locating its position on the schematic, which then links to the official BMW part number 61617161710 for the Vehicle electrical system section.
