Modules/switch/charge socket,off. veh. for BMW 3 Series E91 LCI 325i (2012)

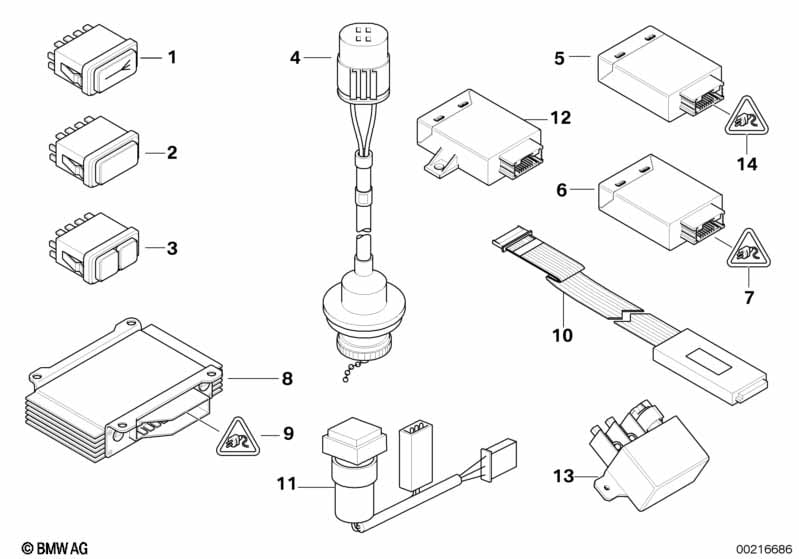

This Modules/switch/charge socket,off. veh. technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Motor extended operation circuit or Unmasked official vehicle or Patrol vehicle, camouflaged |
S108A=Yes S185A=Yes S186A=Yes |
|||||||||
| 10 | Interface for continued engine operation | 1 | 09/2008 | 61357222633 | Shop at ECS Tuning | |||||
| 11 | Button, engine run-on | 1 | 61317217951 | $471.32 | Shop at ECS Tuning | |||||
| 12 | Control unit automatic driving light | 1 | 65737226774 | $605.11 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 13 | Relay | 150A | 1 | 07/2013 | 61367661503 | $73.85 | +core | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
