Cable guide for BMW 3 Series E90 325xi (2008)

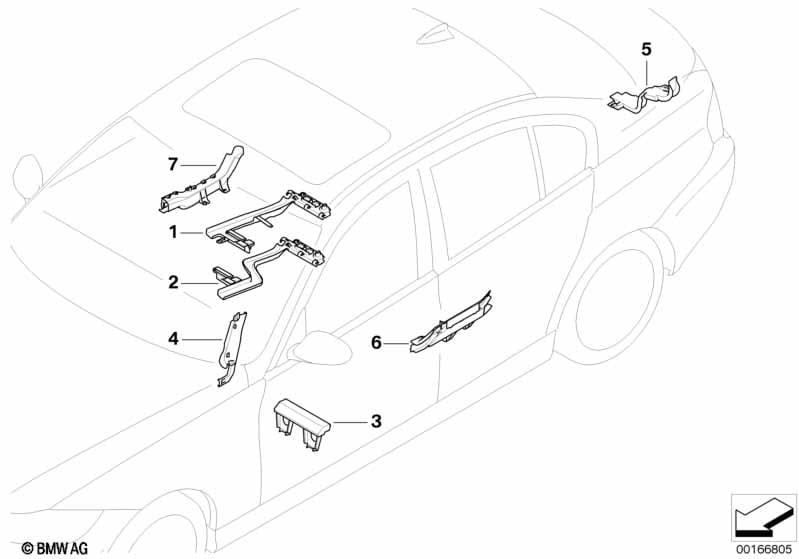

This Cable guide technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable guide for center console | 1 | 61136948338 | $2.01 | Shop at ECS Tuning | |||||
| 03 | Wiring duct, seat cross member | 1 | 61136949080 | $3.63 | Shop at ECS Tuning | |||||
| 04 | Wiring duct A-pillar, left | 1 | 61136937111 | $5.12 | Shop at ECS Tuning | |||||
| 04 | Wiring duct A-pillar, right | 1 | 61136937112 | $2.01 | Shop at ECS Tuning | |||||
| 05 | Wiring duct, baggage compartment, left | 1 | 61136928929 | $3.32 | Shop at ECS Tuning | |||||
| 06 | Rear left cable cover AT entrance door | 1 | 61136928924 | $2.85 | Shop at ECS Tuning | |||||
| 07 | Rear right cable cover AT entrance door | 1 | 61136928925 | $3.78 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 325xi Cable guide?
- This technical diagram illustrates the Cable guide within the Vehicle electrical system group for the 3 Series E90 325xi produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Cable guide for center console (Part #61136948338).
- Which models use the hardware listed in this Cable guide?
- The hardware and components featured in the Cable guide are specific to the 3 Series E90 325xi produced during 2008. These technical specifications ensure that parts like the Cable guide for center console (61136948338) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable guide assembly?
- Each item in the Cable guide corresponds to the numbered list below the illustration. For the 3 Series E90 325xi, you can identify the Cable guide for center console by locating its position on the schematic, which then links to the official BMW part number 61136948338 for the Vehicle electrical system section.
